JV25-3A KOMATSU ROLLER PARTS MANUAL 5001-UP
- 1. SPARE PARTS CATALOGUE KOMATSU JV25-3A Heavy Equipment Manuals heavy-equipmentmanual.com
- 2. This is the sample of the manual if you need complete manual Click Here to download

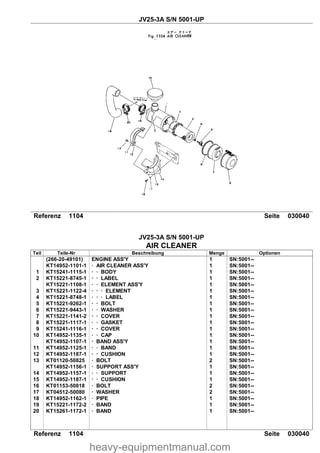

- 3. JV25-3A S/N 5001-UP Referenz 1104 Seite 030040 JV25-3A S/N 5001-UP AIR CLEANER Referenz 1104 Seite 030040 Teil Teile-Nr Beschreibung Menge Optionen (266-20-49101) ENGINE ASS'Y 1 SN:5001-- KT14952-1101-1 AIR CLEANER ASS'Y 1 SN:5001-- 1 KT15241-1115-1 BODY 1 SN:5001-- 2 KT15221-8745-1 LABEL 1 SN:5001-- KT15221-1108-1 ELEMENT ASS'Y 1 SN:5001-- 3 KT15221-1122-4 ELEMENT 1 SN:5001-- 4 KT15221-8748-1 LABEL 1 SN:5001-- 5 KT15221-9262-1 BOLT 1 SN:5001-- 6 KT15221-9443-1 WASHER 1 SN:5001-- 7 KT15221-1141-2 COVER 1 SN:5001-- 8 KT15221-1117-1 GASKET 1 SN:5001-- 9 KT15241-1116-1 COVER 1 SN:5001-- 10 KT14952-1135-1 CAP 1 SN:5001-- KT14952-1107-1 BAND ASS'Y 1 SN:5001-- 11 KT14952-1125-1 BAND 1 SN:5001-- 12 KT14952-1187-1 CUSHION 1 SN:5001-- 13 KT01120-50825 BOLT 2 SN:5001-- KT14952-1156-1 SUPPORT ASS'Y 1 SN:5001-- 14 KT14952-1157-1 SUPPORT 1 SN:5001-- 15 KT14952-1187-1 CUSHION 1 SN:5001-- 16 KT01153-50818 BOLT 2 SN:5001-- 17 KT04512-50080 WASHER 2 SN:5001-- 18 KT14952-1162-1 PIPE 1 SN:5001-- 19 KT15221-1172-2 BAND 1 SN:5001-- 20 KT15261-1172-1 BAND 1 SN:5001-- heavy-equipmentmanual.com

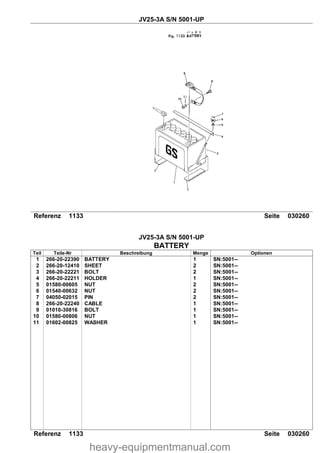

- 4. JV25-3A S/N 5001-UP Referenz 1133 Seite 030260 JV25-3A S/N 5001-UP BATTERY Referenz 1133 Seite 030260 Teil Teile-Nr Beschreibung Menge Optionen 1 266-20-22390 BATTERY 1 SN:5001-- 2 266-20-12410 SHEET 2 SN:5001-- 3 266-20-22221 BOLT 2 SN:5001-- 4 266-20-22211 HOLDER 1 SN:5001-- 5 01580-00605 NUT 2 SN:5001-- 6 01540-00632 NUT 2 SN:5001-- 7 04050-02015 PIN 2 SN:5001-- 8 266-20-22240 CABLE 1 SN:5001-- 9 01010-30816 BOLT 1 SN:5001-- 10 01580-00806 NUT 1 SN:5001-- 11 01602-00825 WASHER 1 SN:5001-- heavy-equipmentmanual.com

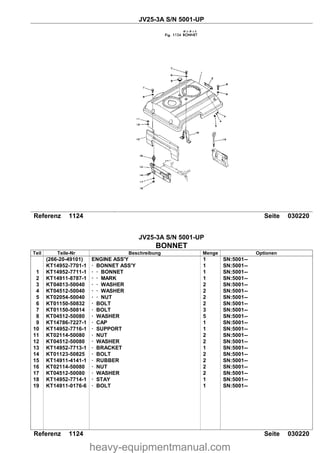

- 5. JV25-3A S/N 5001-UP Referenz 1124 Seite 030220 JV25-3A S/N 5001-UP BONNET Referenz 1124 Seite 030220 Teil Teile-Nr Beschreibung Menge Optionen (266-20-49101) ENGINE ASS'Y 1 SN:5001-- KT14952-7701-1 BONNET ASS'Y 1 SN:5001-- 1 KT14952-7711-1 BONNET 1 SN:5001-- 2 KT14911-8787-1 MARK 1 SN:5001-- 3 KT04013-50040 WASHER 2 SN:5001-- 4 KT04512-50040 WASHER 2 SN:5001-- 5 KT02054-50040 NUT 2 SN:5001-- 6 KT01150-50832 BOLT 2 SN:5001-- 7 KT01150-50814 BOLT 3 SN:5001-- 8 KT04512-50080 WASHER 5 SN:5001-- 9 KT14786-7227-1 CAP 1 SN:5001-- 10 KT14952-7716-1 SUPPORT 1 SN:5001-- 11 KT02114-50080 NUT 2 SN:5001-- 12 KT04512-50080 WASHER 2 SN:5001-- 13 KT14952-7713-1 BRACKET 1 SN:5001-- 14 KT01123-50825 BOLT 2 SN:5001-- 15 KT14911-4141-1 RUBBER 2 SN:5001-- 16 KT02114-50080 NUT 2 SN:5001-- 17 KT04512-50080 WASHER 2 SN:5001-- 18 KT14952-7714-1 STAY 1 SN:5001-- 19 KT14911-0176-6 BOLT 1 SN:5001-- heavy-equipmentmanual.com

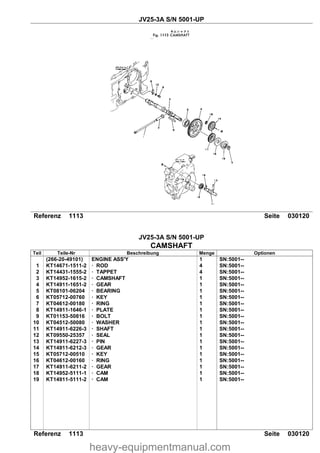

- 6. JV25-3A S/N 5001-UP Referenz 1113 Seite 030120 JV25-3A S/N 5001-UP CAMSHAFT Referenz 1113 Seite 030120 Teil Teile-Nr Beschreibung Menge Optionen (266-20-49101) ENGINE ASS'Y 1 SN:5001-- 1 KT14671-1511-2 ROD 4 SN:5001-- 2 KT14431-1555-2 TAPPET 4 SN:5001-- 3 KT14952-1615-2 CAMSHAFT 1 SN:5001-- 4 KT14911-1651-2 GEAR 1 SN:5001-- 5 KT08101-06204 BEARING 1 SN:5001-- 6 KT05712-00760 KEY 1 SN:5001-- 7 KT04612-00180 RING 1 SN:5001-- 8 KT14911-1646-1 PLATE 1 SN:5001-- 9 KT01153-50816 BOLT 1 SN:5001-- 10 KT04512-50080 WASHER 1 SN:5001-- 11 KT14911-6226-3 SHAFT 1 SN:5001-- 12 KT09550-25357 SEAL 1 SN:5001-- 13 KT14911-6227-3 PIN 1 SN:5001-- 14 KT14911-6212-3 GEAR 1 SN:5001-- 15 KT05712-00510 KEY 1 SN:5001-- 16 KT04612-00160 RING 1 SN:5001-- 17 KT14911-6211-2 GEAR 1 SN:5001-- 18 KT14952-5111-1 CAM 1 SN:5001-- 19 KT14911-5111-2 CAM 1 SN:5001-- heavy-equipmentmanual.com

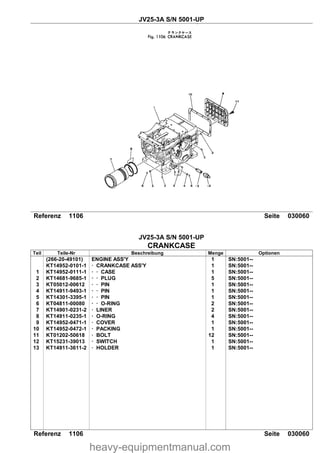

- 7. JV25-3A S/N 5001-UP Referenz 1106 Seite 030060 JV25-3A S/N 5001-UP CRANKCASE Referenz 1106 Seite 030060 Teil Teile-Nr Beschreibung Menge Optionen (266-20-49101) ENGINE ASS'Y 1 SN:5001-- KT14952-0101-1 CRANKCASE ASS'Y 1 SN:5001-- 1 KT14952-0111-1 CASE 1 SN:5001-- 2 KT14681-9685-1 PLUG 5 SN:5001-- 3 KT05012-00612 PIN 1 SN:5001-- 4 KT14911-9493-1 PIN 1 SN:5001-- 5 KT14301-3395-1 PIN 1 SN:5001-- 6 KT04811-00080 O-RING 2 SN:5001-- 7 KT14901-0231-2 LINER 2 SN:5001-- 8 KT14911-0235-1 O-RING 4 SN:5001-- 9 KT14952-0471-1 COVER 1 SN:5001-- 10 KT14952-0472-1 PACKING 1 SN:5001-- 11 KT01202-50618 BOLT 12 SN:5001-- 12 KT15231-39013 SWITCH 1 SN:5001-- 13 KT14911-3611-2 HOLDER 1 SN:5001-- heavy-equipmentmanual.com

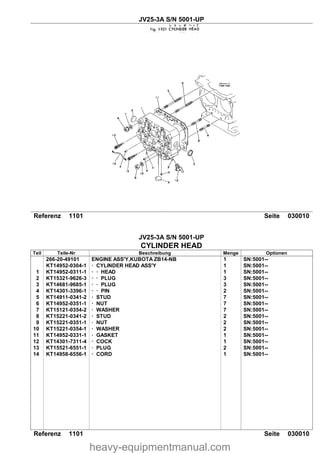

- 8. JV25-3A S/N 5001-UP Referenz 1101 Seite 030010 JV25-3A S/N 5001-UP CYLINDER HEAD Referenz 1101 Seite 030010 Teil Teile-Nr Beschreibung Menge Optionen 266-20-49101 ENGINE ASS'Y,KUBOTA ZB14-NB 1 SN:5001-- KT14952-0304-1 CYLINDER HEAD ASS'Y 1 SN:5001-- 1 KT14952-0311-1 HEAD 1 SN:5001-- 2 KT15321-9626-3 PLUG 3 SN:5001-- 3 KT14681-9685-1 PLUG 3 SN:5001-- 4 KT14301-3396-1 PIN 2 SN:5001-- 5 KT14911-0341-2 STUD 7 SN:5001-- 6 KT14952-0351-1 NUT 7 SN:5001-- 7 KT15121-0354-2 WASHER 7 SN:5001-- 8 KT15221-0341-2 STUD 2 SN:5001-- 9 KT15221-0351-1 NUT 2 SN:5001-- 10 KT15221-0354-1 WASHER 2 SN:5001-- 11 KT14952-0331-1 GASKET 1 SN:5001-- 12 KT14301-7311-4 COCK 1 SN:5001-- 13 KT15521-6551-1 PLUG 2 SN:5001-- 14 KT14958-6556-1 CORD 1 SN:5001-- heavy-equipmentmanual.com

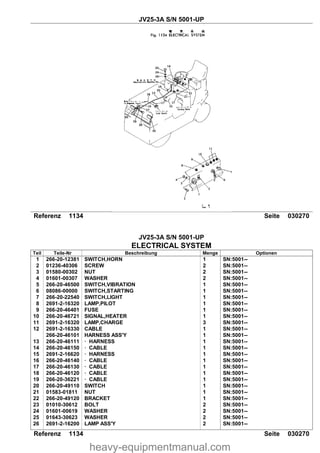

- 9. JV25-3A S/N 5001-UP Referenz 1134 Seite 030270 JV25-3A S/N 5001-UP ELECTRICAL SYSTEM Referenz 1134 Seite 030270 Teil Teile-Nr Beschreibung Menge Optionen 1 266-20-12381 SWITCH,HORN 1 SN:5001-- 2 01236-40306 SCREW 2 SN:5001-- 3 01580-00302 NUT 2 SN:5001-- 4 01601-00307 WASHER 2 SN:5001-- 5 266-20-46500 SWITCH,VIBRATION 1 SN:5001-- 6 08086-00000 SWITCH,STARTING 1 SN:5001-- 7 266-20-22540 SWITCH,LIGHT 1 SN:5001-- 8 2691-2-16320 LAMP,PILOT 1 SN:5001-- 9 266-20-46401 FUSE 1 SN:5001-- 10 266-20-46721 SIGNAL,HEATER 1 SN:5001-- 11 2691-2-16320 LAMP,CHARGE 3 SN:5001-- 12 2691-2-16330 CABLE 1 SN:5001-- 266-20-46101 HARNESS ASS'Y 1 SN:5001-- 13 266-20-46111 HARNESS 1 SN:5001-- 14 266-20-46150 CABLE 1 SN:5001-- 15 2691-2-16620 HARNESS 1 SN:5001-- 16 266-20-46140 CABLE 1 SN:5001-- 17 266-20-46130 CABLE 1 SN:5001-- 18 266-20-46120 CABLE 1 SN:5001-- 19 266-20-36221 CABLE 1 SN:5001-- 20 266-20-49110 SWITCH 1 SN:5001-- 21 01583-01811 NUT 1 SN:5001-- 22 266-20-49120 BRACKET 1 SN:5001-- 23 01010-30612 BOLT 2 SN:5001-- 24 01601-00619 WASHER 2 SN:5001-- 25 01643-30623 WASHER 2 SN:5001-- 26 2691-2-16200 LAMP ASS'Y 2 SN:5001-- heavy-equipmentmanual.com

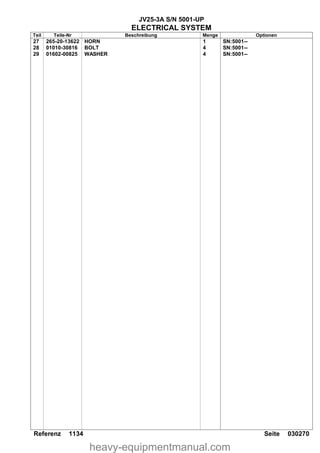

- 10. JV25-3A S/N 5001-UP ELECTRICAL SYSTEM Referenz 1134 Seite 030270 Teil Teile-Nr Beschreibung Menge Optionen 27 265-20-13622 HORN 1 SN:5001-- 28 01010-30816 BOLT 4 SN:5001-- 29 01602-00825 WASHER 4 SN:5001-- heavy-equipmentmanual.com

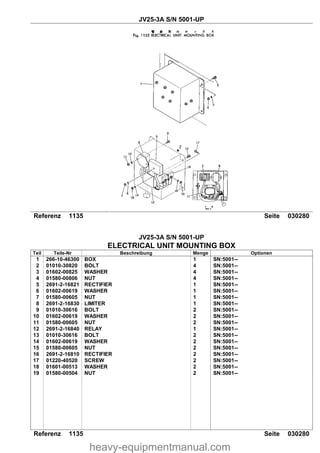

- 11. JV25-3A S/N 5001-UP Referenz 1135 Seite 030280 JV25-3A S/N 5001-UP ELECTRICAL UNIT MOUNTING BOX Referenz 1135 Seite 030280 Teil Teile-Nr Beschreibung Menge Optionen 1 266-10-46300 BOX 1 SN:5001-- 2 01010-30820 BOLT 4 SN:5001-- 3 01602-00825 WASHER 4 SN:5001-- 4 01580-00806 NUT 4 SN:5001-- 5 2691-2-16821 RECTIFIER 1 SN:5001-- 6 01602-00619 WASHER 1 SN:5001-- 7 01580-00605 NUT 1 SN:5001-- 8 2691-2-16830 LIMITER 1 SN:5001-- 9 01010-30616 BOLT 2 SN:5001-- 10 01602-00619 WASHER 2 SN:5001-- 11 01580-00605 NUT 2 SN:5001-- 12 2691-2-16840 RELAY 1 SN:5001-- 13 01010-30616 BOLT 2 SN:5001-- 14 01602-00619 WASHER 2 SN:5001-- 15 01580-00605 NUT 2 SN:5001-- 16 2691-2-16810 RECTIFIER 2 SN:5001-- 17 01220-40520 SCREW 2 SN:5001-- 18 01601-00513 WASHER 2 SN:5001-- 19 01580-00504 NUT 2 SN:5001-- heavy-equipmentmanual.com

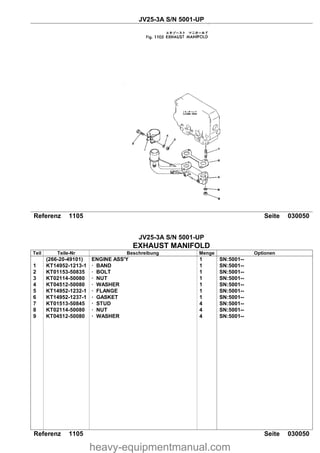

- 12. JV25-3A S/N 5001-UP Referenz 1105 Seite 030050 JV25-3A S/N 5001-UP EXHAUST MANIFOLD Referenz 1105 Seite 030050 Teil Teile-Nr Beschreibung Menge Optionen (266-20-49101) ENGINE ASS'Y 1 SN:5001-- 1 KT14952-1213-1 BAND 1 SN:5001-- 2 KT01153-50835 BOLT 1 SN:5001-- 3 KT02114-50080 NUT 1 SN:5001-- 4 KT04512-50080 WASHER 1 SN:5001-- 5 KT14952-1232-1 FLANGE 1 SN:5001-- 6 KT14952-1237-1 GASKET 1 SN:5001-- 7 KT01513-50845 STUD 4 SN:5001-- 8 KT02114-50080 NUT 4 SN:5001-- 9 KT04512-50080 WASHER 4 SN:5001-- heavy-equipmentmanual.com

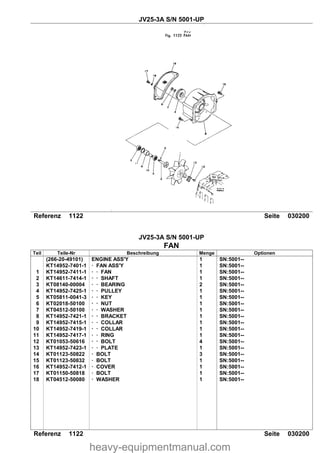

- 13. JV25-3A S/N 5001-UP Referenz 1122 Seite 030200 JV25-3A S/N 5001-UP FAN Referenz 1122 Seite 030200 Teil Teile-Nr Beschreibung Menge Optionen (266-20-49101) ENGINE ASS'Y 1 SN:5001-- KT14952-7401-1 FAN ASS'Y 1 SN:5001-- 1 KT14952-7411-1 FAN 1 SN:5001-- 2 KT14611-7414-1 SHAFT 1 SN:5001-- 3 KT08140-00004 BEARING 2 SN:5001-- 4 KT14952-7425-1 PULLEY 1 SN:5001-- 5 KT05811-0041-3 KEY 1 SN:5001-- 6 KT02018-50100 NUT 1 SN:5001-- 7 KT04512-50100 WASHER 1 SN:5001-- 8 KT14952-7421-1 BRACKET 1 SN:5001-- 9 KT14952-7415-1 COLLAR 1 SN:5001-- 10 KT14952-7419-1 COLLAR 1 SN:5001-- 11 KT14952-7417-1 RING 1 SN:5001-- 12 KT01053-50616 BOLT 4 SN:5001-- 13 KT14952-7423-1 PLATE 1 SN:5001-- 14 KT01123-50822 BOLT 3 SN:5001-- 15 KT01123-50832 BOLT 1 SN:5001-- 16 KT14952-7412-1 COVER 1 SN:5001-- 17 KT01150-50818 BOLT 1 SN:5001-- 18 KT04512-50080 WASHER 1 SN:5001-- heavy-equipmentmanual.com

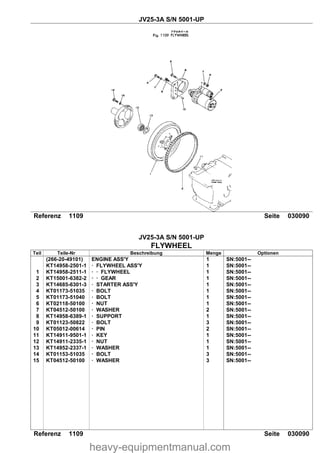

- 14. JV25-3A S/N 5001-UP Referenz 1109 Seite 030090 JV25-3A S/N 5001-UP FLYWHEEL Referenz 1109 Seite 030090 Teil Teile-Nr Beschreibung Menge Optionen (266-20-49101) ENGINE ASS'Y 1 SN:5001-- KT14958-2501-1 FLYWHEEL ASS'Y 1 SN:5001-- 1 KT14958-2511-1 FLYWHEEL 1 SN:5001-- 2 KT15001-6382-2 GEAR 1 SN:5001-- 3 KT14685-6301-3 STARTER ASS'Y 1 SN:5001-- 4 KT01173-51035 BOLT 1 SN:5001-- 5 KT01173-51040 BOLT 1 SN:5001-- 6 KT02118-50100 NUT 1 SN:5001-- 7 KT04512-50100 WASHER 2 SN:5001-- 8 KT14958-6389-1 SUPPORT 1 SN:5001-- 9 KT01123-50822 BOLT 3 SN:5001-- 10 KT05012-00614 PIN 2 SN:5001-- 11 KT14911-9501-1 KEY 1 SN:5001-- 12 KT14911-2335-1 NUT 1 SN:5001-- 13 KT14952-2337-1 WASHER 1 SN:5001-- 14 KT01153-51035 BOLT 3 SN:5001-- 15 KT04512-50100 WASHER 3 SN:5001-- heavy-equipmentmanual.com

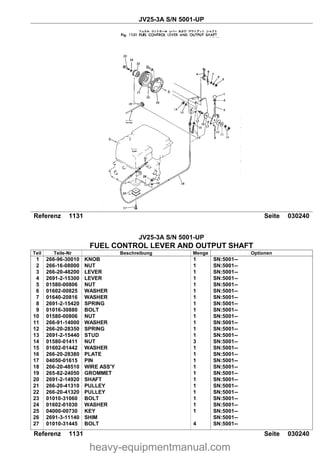

- 15. JV25-3A S/N 5001-UP Referenz 1131 Seite 030240 JV25-3A S/N 5001-UP FUEL CONTROL LEVER AND OUTPUT SHAFT Referenz 1131 Seite 030240 Teil Teile-Nr Beschreibung Menge Optionen 1 266-96-30010 KNOB 1 SN:5001-- 2 266-16-08000 NUT 1 SN:5001-- 3 266-20-48200 LEVER 1 SN:5001-- 4 2691-2-15300 LEVER 1 SN:5001-- 5 01580-00806 NUT 1 SN:5001-- 6 01602-00825 WASHER 1 SN:5001-- 7 01640-20816 WASHER 1 SN:5001-- 8 2691-2-15420 SPRING 1 SN:5001-- 9 01016-30880 BOLT 1 SN:5001-- 10 01580-00806 NUT 1 SN:5001-- 11 266-91-14000 WASHER 1 SN:5001-- 12 266-20-28350 SPRING 1 SN:5001-- 13 2691-2-15440 STUD 1 SN:5001-- 14 01580-01411 NUT 3 SN:5001-- 15 01602-01442 WASHER 1 SN:5001-- 16 266-20-28380 PLATE 1 SN:5001-- 17 04050-01615 PIN 1 SN:5001-- 18 266-20-48510 WIRE ASS'Y 1 SN:5001-- 19 265-82-24050 GROMMET 1 SN:5001-- 20 2691-2-14920 SHAFT 1 SN:5001-- 21 266-20-41310 PULLEY 1 SN:5001-- 22 266-20-41320 PULLEY 1 SN:5001-- 23 01010-31060 BOLT 1 SN:5001-- 24 01602-01030 WASHER 1 SN:5001-- 25 04000-00730 KEY 1 SN:5001-- 26 2691-3-11140 SHIM SN:5001-- 27 01010-31445 BOLT 4 SN:5001-- heavy-equipmentmanual.com

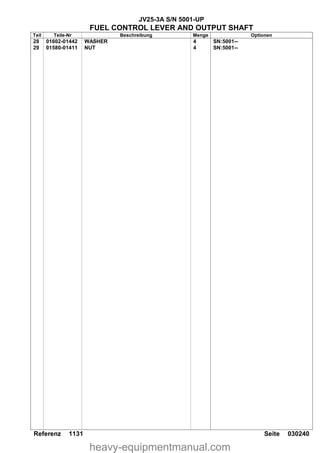

- 16. JV25-3A S/N 5001-UP FUEL CONTROL LEVER AND OUTPUT SHAFT Referenz 1131 Seite 030240 Teil Teile-Nr Beschreibung Menge Optionen 28 01602-01442 WASHER 4 SN:5001-- 29 01580-01411 NUT 4 SN:5001-- heavy-equipmentmanual.com
