Presentation Homologation Kendaraan Roda 3

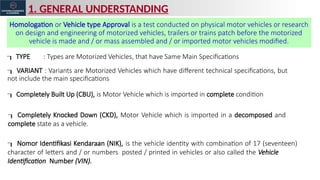

- 2. 1. GENERAL UNDERSTANDING Homologation or Vehicle type Approval is a test conducted on physical motor vehicles or research on design and engineering of motorized vehicles, trailers or trains patch before the motorized vehicle is made and / or mass assembled and / or imported motor vehicles modified. TYPE : Types are Motorized Vehicles, that have Same Main Specifications VARIANT : Variants are Motorized Vehicles which have different technical specifications, but not include the main specifications Completely Knocked Down (CKD), Motor Vehicle which is imported in a decomposed and complete state as a vehicle. Completely Built Up (CBU), is Motor Vehicle which is imported in complete condition Nomor Identifikasi Kendaraan (NIK), is the vehicle identity with combination of 17 (seventeen) character of letters and / or numbers posted / printed in vehicles or also called the Vehicle Identification Number (VIN).

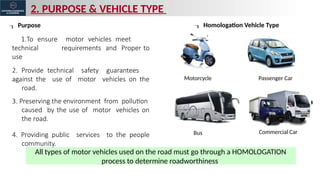

- 3. 2. PURPOSE & VEHICLE TYPE Purpose 1.To ensure motor vehicles meet technical requirements and Proper to use 2. Provide technical safety guarantees against the use of motor vehicles on the road. 3. Preserving the environment from pollution caused by the use of motor vehicles on the road. 4. Providing public services to the people community. Homologation Vehicle Type Motorcycle Passenger Car Bus Commercial Car All types of motor vehicles used on the road must go through a HOMOLOGATION process to determine roadworthiness

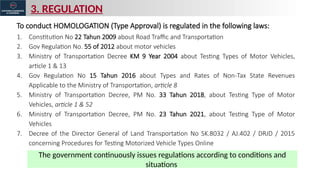

- 4. 3. REGULATION The government continuously issues regulations according to conditions and situations To conduct HOMOLOGATION (Type Approval) is regulated in the following laws: 1. Constitution No 22 Tahun 2009 about Road Traffic and Transportation 2. Gov Regulation No. 55 of 2012 about motor vehicles 3. Ministry of Transportation Decree KM 9 Year 2004 about Testing Types of Motor Vehicles, article 1 & 13 4. Gov Regulation No 15 Tahun 2016 about Types and Rates of Non-Tax State Revenues Applicable to the Ministry of Transportation, article 8 5. Ministry of Transportation Decree, PM No. 33 Tahun 2018, about Testing Type of Motor Vehicles, article 1 & 52 6. Ministry of Transportation Decree, PM No. 23 Tahun 2021, about Testing Type of Motor Vehicles 7. Decree of the Director General of Land Transportation No SK.8032 / AJ.402 / DRJD / 2015 concerning Procedures for Testing Motorized Vehicle Types Online

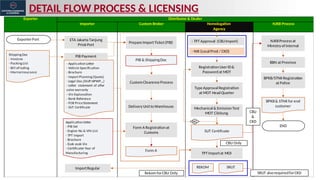

- 5. DETAIL FLOW PROCESS & LICENSING Exporter Distributor & Dealer Importer Custom Broker Homologation NJKB Process Agency ExporterPort ETA Jakarta Tanjung PriokPort PIB Payment Prepare ImportTicket(PIB) - TPT Approval (CBUImport) NJKBProcessat Ministryof Internal RegistrationUserID& Password at MOT Type Approval Registration at MOT Head Quarter Mechanical & Emission Test MOT Cibitung SUT Certificate TPT Importat MOI SRUT ShippingDoc - Invoices - PackingList - Bill of lading - MarineInsurance - Application Letter - Vehicle Specification - Brochure - Import Planning(Quota) - Legal Doc,(SIUP,NPWP,,,) - Letter statement of after sales warranty - Vin Explanation - Bank Reference - FOB PriceStatement - SUT Certificate Application letter - PIB Set - Engine No & VIN List - TPT Import - Brochure - Esek esek Vin - Certificater Year of Manufacturing ImportRegular PIB & ShippingDoc CustomClearence Process Delivery UnittoWarehouse Form A Registrationat Customs Form A BBN at Province BPKB/STNKRegistration at Police BPKB& STNKfor end customer END CBU Only NG - NIK(Local Prod / CKD) REKOM Rekom forCBU Only CBU & CKD SRUT alsorequiredforCKD

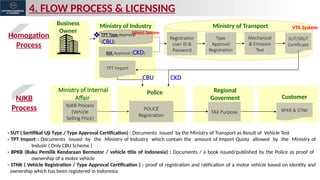

- 6. 4. FLOW PROCESS & LICENSING NJKB Process (Vehicle Selling Price) POLICE Registration BPKB & STNK NIK Approval (CKD) Ministry of Industry Ministry of Transport Ministry of Internal Affair Police Customer Homogation Process NJKB Process ❖ Business Owner - SUT ( Sertifikat Uji Type / Type Approval Certification) : Documents issued by the Ministry of Transport as Result of Vehicle Test - TPT Import : Documents issued by the Ministry of Industry which contain the amount of Import Quota allowed by the Ministry of Industr ( Only CBU Scheme ) - BPKB (Buku Pemilik Kendaraan Bermotor / vehicle title of Indonesia) : Documents / a book issued/published by the Police as proof of ownership of a motor vehicle - STNK ( Vehicle Registration / Type Approval Certification ) : proof of registration and ratification of a motor vehicle based on identity and ownership which has been registered in Indonesia TPT Type Approval (CBU) Registration User ID & Password Type Approval Registration Mechanical & Emission Test SUT/SRUT Certificate VTA System SIINAS System TAX Purpose Regional Goverment TPT Import CKD CBU

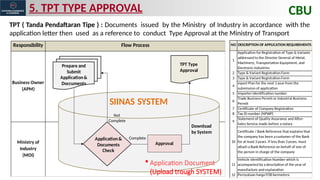

- 7. Responsibility Flow Process Business Owner (APM) Ministry of Industry (MOI) Complete Not Complete Download by System Prepare and Submit Application& Doccuments TPT Type Approval Application& Documents Check SIINAS SYSTEM Approval 5. TPT TYPE APPROVAL CBU Application Document (Upload trough SYSTEM) TPT ( Tanda Pendaftaran Tipe ) : Documents issued by the Ministry of Industry in accordance with the application letter then used as a reference to conduct Type Approval at the Ministry of Transport 1 Application for Registration of Type & Variants addressed to the Director General of Metal, Machinery, Transportation Equipment, and Electronic Industries 2 Type & Variant Registration Form 3 Type & Variant Registration Form 4 mport Plan for the next 1 year from the submission of application 5 Importer identification number 6 Trade Business Permit or Industrial Business Permit 7 Certificate of Company Registration 8 Tax ID number (NPWP) 9 Statement of Quality Assurance and After- Sales Service made before a notary 10 Certificate / Bank Reference that explains that the company has been a customer of the Bank for at least 3 years. If less than 3 years, must attach a Bank Reference on behalf of one of the person in charge of the company 11 Vehicle Identification Number which is accompanied by a description of the year of manufacture and explanation 12 Pernyataan harga FOB bermetera NO DESCRIPTION OF APPLICATION REQUIREMENTS

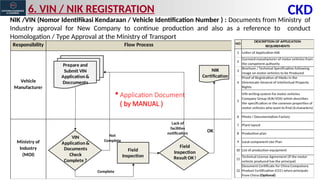

- 8. Responsibility Flow Process Vehicle Manufacturer Ministry of Industry (MOI) Field Inspection Complete Not Complete OK Lack of facilities notification Prepare and Submit VIN Application& Doccuments NIK Certification Field Inspection Result OK! VIN Application& Documents Check Complete ? 6. VIN / NIK REGISTRATION Application Document ( by MANUAL ) CKD NIK /VIN (Nomor Identifikasi Kendaraan / Vehicle Identification Number ) : Documents from Ministry of Industry approval for New Company to continue production and also as a reference to conduct Homologation / Type Approval at the Ministry of Transport 1 Letter of Application NIK 2 Licensed manufacturer of motor vehicles from the competent authority 3 Brochure / Technical Specification following image on motor vehicles to be Produced 4 Proof of Registration of Marks in the Directorate General of Intellectual Property Rights 5 VIN writing system for motor vehicles Company Group (KJK/VDS) which describes the specification or the common properties of motor vehicles who want to find (6 characters) 6 Photo / Documentation Factory 7 Plant layout 8 Production plan 9 Local component Use Plan 10 List of production equipment 11 Technical License Agreement (if the motor vehicle produced has the principal) 12 Document Certificate for China Compulsory Product Certification (CCC) when principals from China (Optional) NO DESCRIPTION OF APPLICATION REQUIREMENTS
- 9. 7. MILESTONE Approval of every process depend on situation, and need to proactively to MOI and MOT Homologation Milestone (Fastest Approval Timing ) ❖ CKD CBU W1 W2 W3 W4 W1 W2 W3 W4 W1 W2 W3 W4 W1 W2 W3 W4 TPT Uji - ○ NIK ○ - ○ ○ Submit Application ○ ○ Mechanical test ○ ○ Emission test ○ ○ Issue SUT ○ ○ Submit Application Approval Month X Month III TPT Import (at MOI) - ○ Category TPT/NIK (at MOI) Vehicle Type Approval (at MOT) Approval Month V Month VI Month VII Month VIII Month IX Month IV Submit Application Activities Items Month I Month II CBU Scheme (Fastest Timing) (Fastest Timing) (Fastest Timing) Electric Vehicle NOT

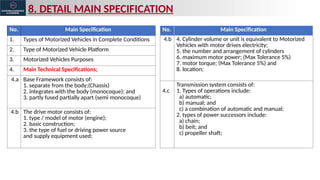

- 10. 8. DETAIL MAIN SPECIFICATION No. Main Specification 1. Types of Motorized Vehicles in Complete Conditions 2. Type of Motorized Vehicle Platform 3. Motorized Vehicles Purposes 4. Main Technical Specifications; 4.a Base Framework consists of: 1. separate from the body;(Chassis) 2. integrates with the body (monocoque); and 3. partly fused partially apart (semi monocoque) 4.b The drive motor consists of: 1. type / model of motor (engine); 2. basic construction; 3. the type of fuel or driving power source and supply equipment used; No. Main Specification 4.b 4. Cylinder volume or unit is equivalent to Motorized Vehicles with motor drives electricity; 5. the number and arrangement of cylinders 6. maximum motor power; (Max Tolerance 5%) 7. motor torque; (Max Tolerance 5%) and 8. location; 4.c Transmission system consists of: 1. Types of operations include: a) automatic; b) manual; and c) a combination of automatic and manual; 2. types of power successors include: a) chain; b) beit; and c) propeller shaft;

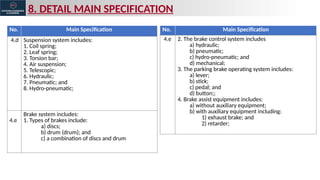

- 11. No. Main Specification 4.d Suspension system includes: 1. Coil spring; 2. Leaf spring; 3. Torsion bar; 4. Air suspension; 5. Telescopic; 6. Hydraulic; 7. Pneumatic; and 8. Hydro-pneumatic; 4.e Brake system includes: 1. Types of brakes include: a) discs; b) drum (drum); and c) a combination of discs and drum No. Main Specification 4.e 2. The brake control system includes a) hydraulic; b) pneumatic; c) hydro-pneumatic; and d) mechanical; 3. The parking brake operating system includes: a) lever; b) stick; c) pedal; and d) button;; 4. Brake assist equipment includes: a) without auxiliary equipment; b) with auxiliary equipment including: 1) exhaust brake; and 2) retarder; 8. DETAIL MAIN SPECIFICATION

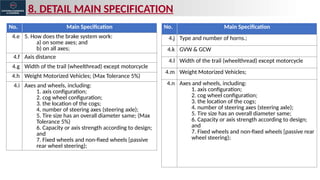

- 12. No. Main Specification 4.e 5. How does the brake system work: a) on some axes; and b) on all axes; 4.f Axis distance 4.g Width of the trail (wheelthread) except motorcycle 4.h Weight Motorized Vehicles; (Max Tolerance 5%) 4.i Axes and wheels, including: 1. axis configuration; 2. cog wheel configuration; 3. the location of the cogs; 4. number of steering axes (steering axle); 5. Tire size has an overall diameter same; (Max Tolerance 5%) 6. Capacity or axis strength according to design; and 7. Fixed wheels and non-fixed wheels [passive rear wheel steering); No. Main Specification 4.j Type and number of horns.; 4.k GVW & GCW 4.l Width of the trail (wheelthread) except motorcycle 4.m Weight Motorized Vehicles; 4.n Axes and wheels, including: 1. axis configuration; 2. cog wheel configuration; 3. the location of the cogs; 4. number of steering axes (steering axle); 5. Tire size has an overall diameter same; 6. Capacity or axis strength according to design; and 7. Fixed wheels and non-fixed wheels [passive rear wheel steering); 8. DETAIL MAIN SPECIFICATION

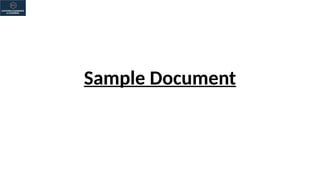

- 13. Sample Document

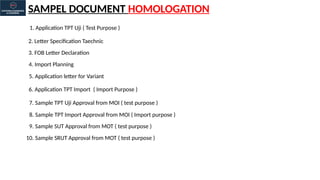

- 14. SAMPEL DOCUMENT HOMOLOGATION 1. Application TPT Uji ( Test Purpose ) 2. Letter Specification Taechnic 3. FOB Letter Declaration 4. Import Planning 5. Application letter for Variant 6. Application TPT Import ( Import Purpose ) 7. Sample TPT Uji Approval from MOI ( test purpose ) 8. Sample TPT Import Approval from MOI ( Import purpose ) 9. Sample SUT Approval from MOT ( test purpose ) 10. Sample SRUT Approval from MOT ( test purpose )

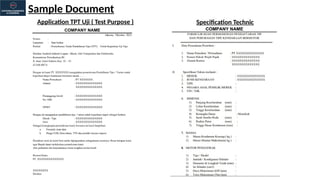

- 15. Sample Document Application TPT Uji ( Test Purpose ) Specification Technic

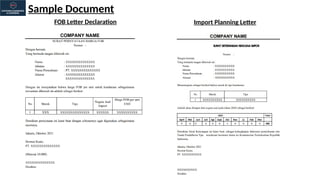

- 16. Sample Document FOB Letter Declaration Import Planning Letter

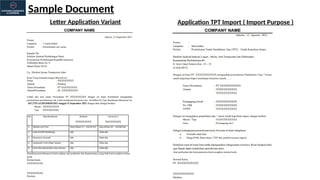

- 17. Sample Document Letter Application Variant Application TPT Import ( Import Purpose )

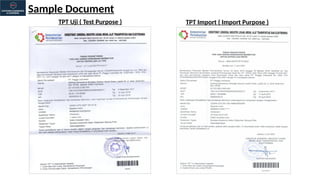

- 18. Sample Document TPT Uji ( Test Purpose ) TPT Import ( Import Purpose )

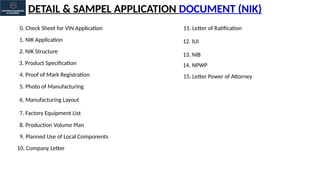

- 20. DETAIL & SAMPEL APPLICATION DOCUMENT (NIK) 0. Check Sheet for VIN Application 1. NIK Application 2. NIK Structure 3. Product Specification 4. Proof of Mark Registration 5. Photo of Manufacturing 6. Manufacturing Layout 7. Factory Equipment List 8. Production Volume Plan 9. Planned Use of Local Components 10. Company Letter 11. Letter of Ratification 12. IUI 13. NIB 15. Letter Power of Attorney 14. NPWP

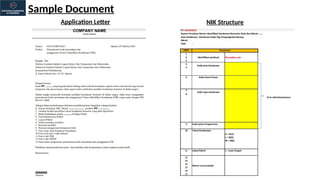

- 21. Sample Document Application Letter NIK Structure

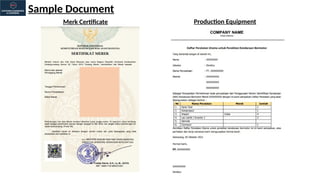

- 22. Sample Document Merk Certificate Production Equipment

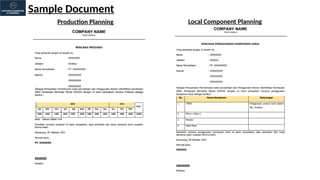

- 23. Sample Document Production Planning Local Component Planning

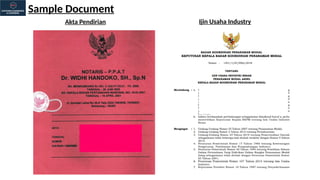

- 24. Sample Document Akta Pendirian Ijin Usaha Industry

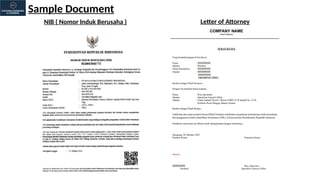

- 25. Sample Document NIB ( Nomor Induk Berusaha ) Letter of Attorney
