The document discusses the benefits and implementation of efficient parallel testing using Docker, emphasizing the importance of customizable test environments for faster deployments and immediate feedback on test failures. It covers the transition from LXC to Docker for improved flexibility, resource management, and standardized workflows. Additionally, it outlines Codeship's experience in enhancing their testing platform through Docker's features and community support.
Efficient Parallel Testing with Docker
- 1. Efficient Parallel Testing with Docker Laura Frank Senior Engineer, Codeship

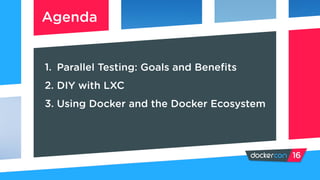

- 4. 1. Parallel Testing: Goals and Benefits 2. DIY with LXC 3. Using Docker and the Docker Ecosystem Agenda
- 6. Create a customizable, flexible test environment that enables us to run tests in parallel GOAL

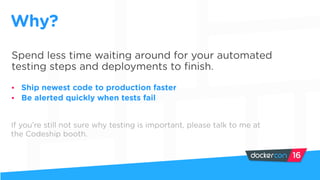

- 7. Spend less time waiting around for your automated testing steps and deployments to finish. • Ship newest code to production faster • Be alerted quickly when tests fail Why? If you’re still not sure why testing is important, please talk to me at the Codeship booth.

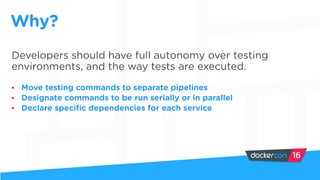

- 8. Developers should have full autonomy over testing environments, and the way tests are executed. • Move testing commands to separate pipelines • Designate commands to be run serially or in parallel • Declare specific dependencies for each service Why?
- 9. Let’s eliminate friction in the development cycle

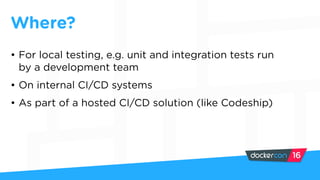

- 10. • For local testing, e.g. unit and integration tests run by a development team • On internal CI/CD systems • As part of a hosted CI/CD solution (like Codeship) Where?

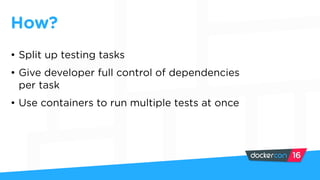

- 11. • Split up testing tasks • Give developer full control of dependencies per task • Use containers to run multiple tests at once How?

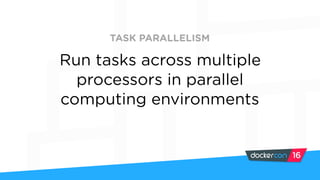

- 13. Run tasks across multiple processors in parallel computing environments TASK PARALLELISM

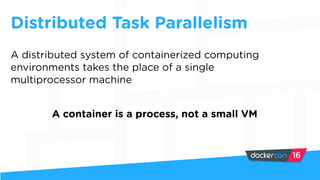

- 14. Distributed Task Parallelism A distributed system of containerized computing environments takes the place of a single multiprocessor machine A container is a process, not a small VM

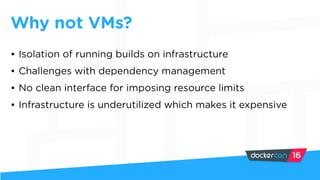

- 15. Why not VMs? • Isolation of running builds on infrastructure • Challenges with dependency management • No clean interface for imposing resource limits • Infrastructure is underutilized which makes it expensive

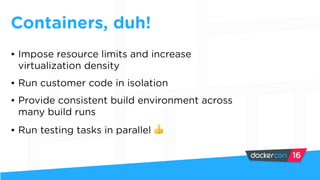

- 16. Containers, duh! • Impose resource limits and increase virtualization density • Run customer code in isolation • Provide consistent build environment across many build runs • Run testing tasks in parallel 👍

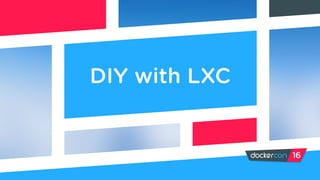

- 17. DIY with LXC

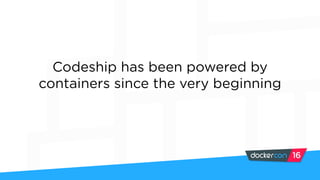

- 18. Codeship has been powered by containers since the very beginning

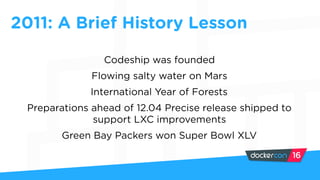

- 19. Codeship was founded Flowing salty water on Mars International Year of Forests Preparations ahead of 12.04 Precise release shipped to support LXC improvements Green Bay Packers won Super Bowl XLV 2011: A Brief History Lesson
- 20. I should use LXC…

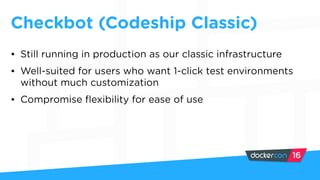

- 21. Checkbot (Codeship Classic) • Still running in production as our classic infrastructure • Well-suited for users who want 1-click test environments without much customization • Compromise flexibility for ease of use

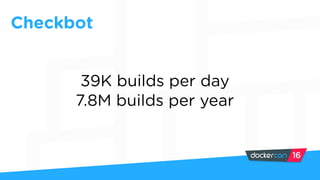

- 22. Checkbot 39K builds per day 7.8M builds per year

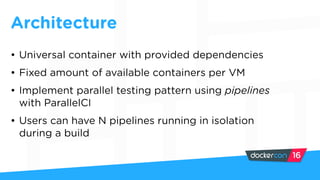

- 23. Architecture • Universal container with provided dependencies • Fixed amount of available containers per VM • Implement parallel testing pattern using pipelines with ParallelCI • Users can have N pipelines running in isolation during a build

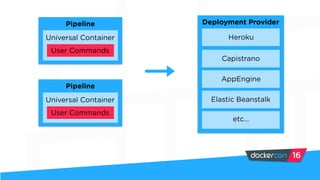

- 24. User Commands Universal Container Pipeline User Commands Universal Container Pipeline Heroku Deployment Provider Capistrano AppEngine Elastic Beanstalk etc…

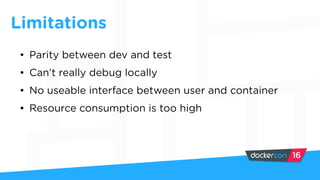

- 25. Limitations • Parity between dev and test • Can’t really debug locally • No useable interface between user and container • Resource consumption is too high

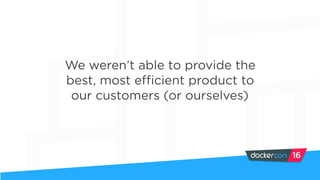

- 26. We weren’t able to provide the best, most efficient product to our customers (or ourselves)
- 27. Using Docker and the Docker Ecosystem

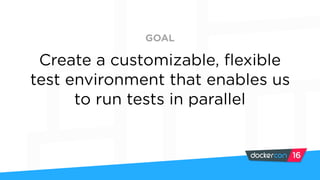

- 28. Create a customizable, flexible test environment that enables us to run tests in parallel GOAL
- 29. Big Wins with Docker Even before 1.0, Docker was a clear choice • Support and tooling • Standardization • Community of motivated developers

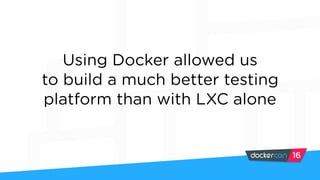

- 30. Using Docker allowed us to build a much better testing platform than with LXC alone
- 31. Codeship Jet

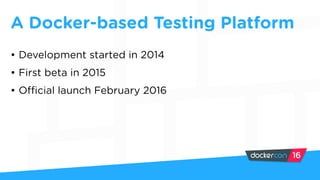

- 32. A Docker-based Testing Platform • Development started in 2014 • First beta in 2015 • Official launch February 2016

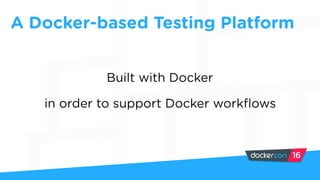

- 33. A Docker-based Testing Platform Built with Docker in order to support Docker workflows

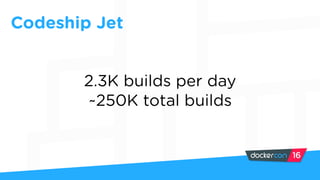

- 34. Codeship Jet 2.3K builds per day ~250K total builds

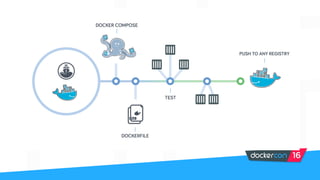

- 35. Docker Workflow Tools • Docker Compose: service and step definition syntax • Docker Registry: storage for images; remote caching* • Docker for Mac and Windows: give users ability to reproduce CI environments locally *not for long!

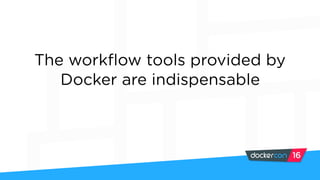

- 37. The workflow tools provided by Docker are indispensable

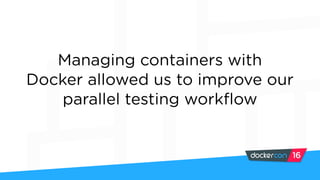

- 39. Managing containers with Docker allowed us to improve our parallel testing workflow

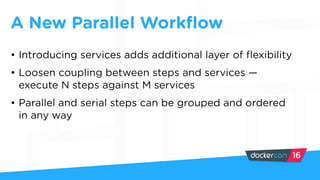

- 40. A New Parallel Workflow • Introducing services adds additional layer of flexibility • Loosen coupling between steps and services — execute N steps against M services • Parallel and serial steps can be grouped and ordered in any way

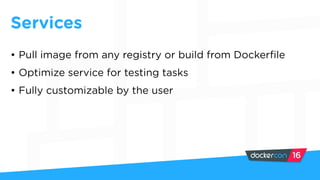

- 41. Services • Pull image from any registry or build from Dockerfile • Optimize service for testing tasks • Fully customizable by the user

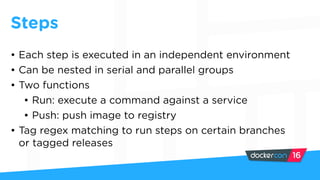

- 42. Steps • Each step is executed in an independent environment • Can be nested in serial and parallel groups • Two functions • Run: execute a command against a service • Push: push image to registry • Tag regex matching to run steps on certain branches or tagged releases

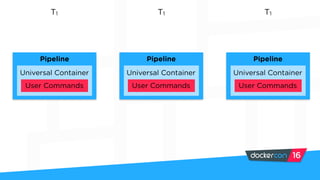

- 43. User Commands Universal Container Pipeline User Commands Universal Container Pipeline User Commands Universal Container Pipeline T1 T1 T1

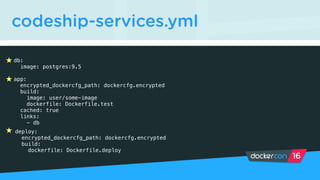

- 45. codeship-services.yml db: image: postgres:9.5 app: encrypted_dockercfg_path: dockercfg.encrypted build: image: user/some-image dockerfile: Dockerfile.test cached: true links: - db deploy: encrypted_dockercfg_path: dockercfg.encrypted build: dockerfile: Dockerfile.deploy

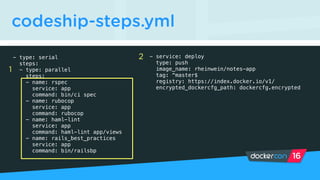

- 46. codeship-steps.yml - type: serial steps: - type: parallel steps: - name: rspec service: app command: bin/ci spec - name: rubocop service: app command: rubocop - name: haml-lint service: app command: haml-lint app/views - name: rails_best_practices service: app command: bin/railsbp - service: deploy type: push image_name: rheinwein/notes-app tag: ^master$ registry: https://index.docker.io/v1/ encrypted_dockercfg_path: dockercfg.encrypted 1 2

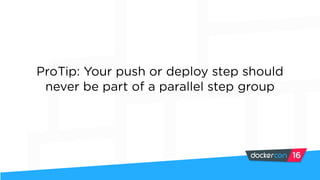

- 47. ProTip: Your push or deploy step should never be part of a parallel step group
- 48. Demo!

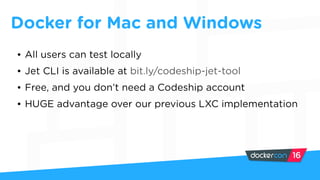

- 49. Docker for Mac and Windows • All users can test locally • Jet CLI is available at bit.ly/codeship-jet-tool • Free, and you don’t need a Codeship account • HUGE advantage over our previous LXC implementation

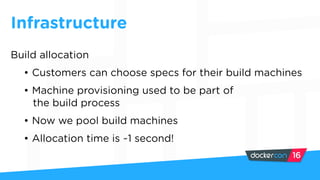

- 51. Infrastructure Build allocation • Customers can choose specs for their build machines • Machine provisioning used to be part of the build process • Now we pool build machines • Allocation time is ~1 second!

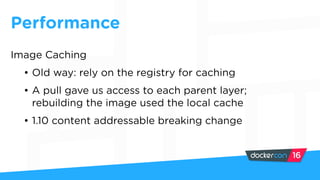

- 52. Performance Image Caching • Old way: rely on the registry for caching • A pull gave us access to each parent layer; rebuilding the image used the local cache • 1.10 content addressable breaking change

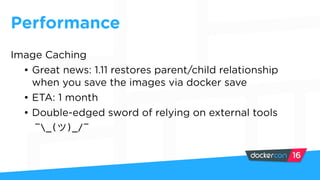

- 53. Performance Image Caching • Great news: 1.11 restores parent/child relationship when you save the images via docker save • ETA: 1 month • Double-edged sword of relying on external tools ¯_( )_/¯

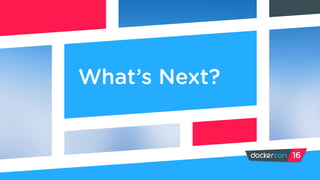

- 54. What’s Next?

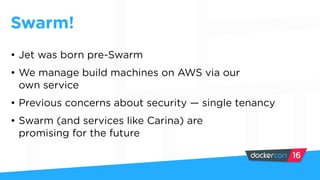

- 55. Swarm! • Jet was born pre-Swarm • We manage build machines on AWS via our own service • Previous concerns about security — single tenancy • Swarm (and services like Carina) are promising for the future

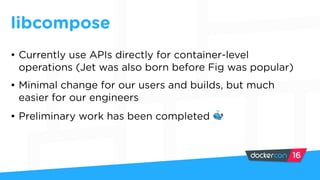

- 56. libcompose • Currently use APIs directly for container-level operations (Jet was also born before Fig was popular) • Minimal change for our users and builds, but much easier for our engineers • Preliminary work has been completed 🐳

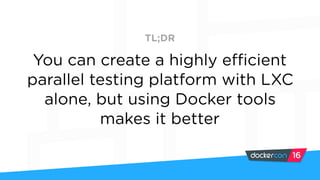

- 57. You can create a highly efficient parallel testing platform with LXC alone, but using Docker tools makes it better TL;DR
