Les vérins

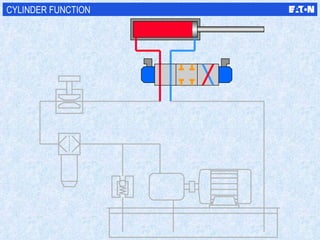

- 1. ACTUATORS Copyright Eaton Hydraulics 2000 Steve Skinner, Eaton Hydraulics, Havant, UK

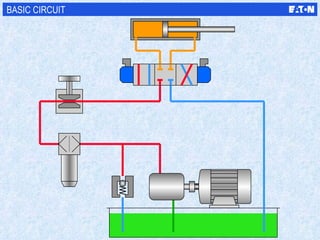

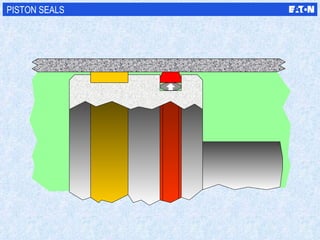

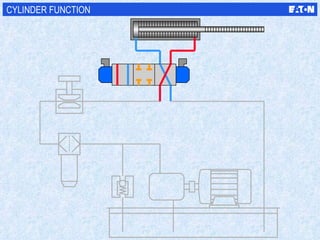

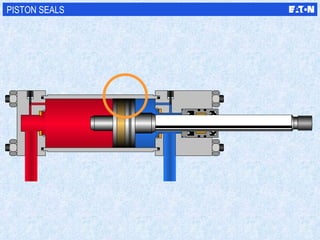

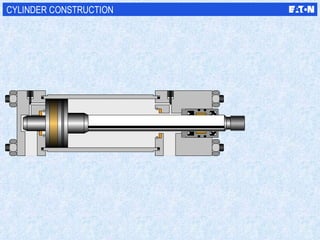

- 10. PISTON SEALS
- 11. PISTON SEALS

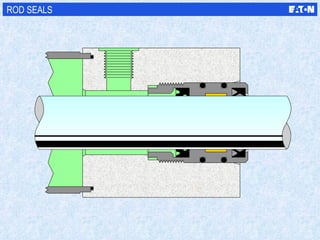

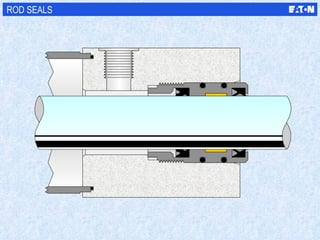

- 12. ROD SEALS

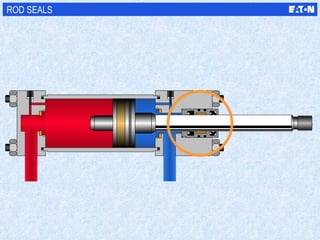

- 13. ROD SEALS
- 14. ROD SEALS

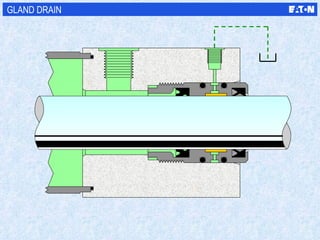

- 15. GLAND DRAIN

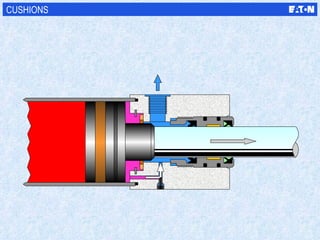

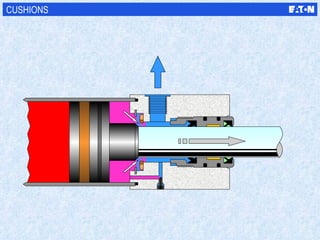

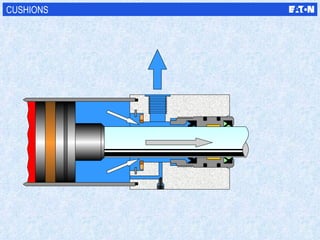

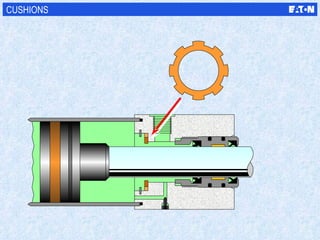

- 16. CUSHIONS
- 17. CUSHIONS

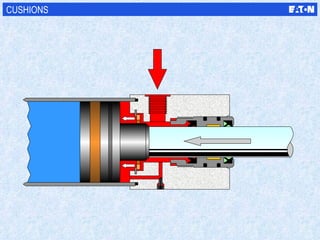

- 18. CUSHIONS
- 19. CUSHIONS
- 20. CUSHIONS

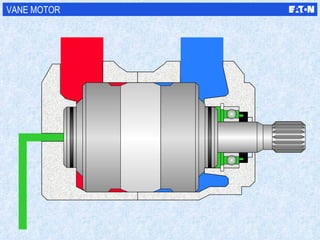

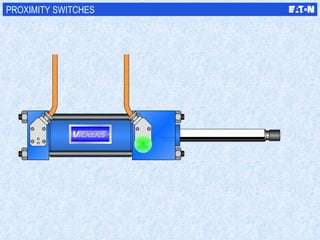

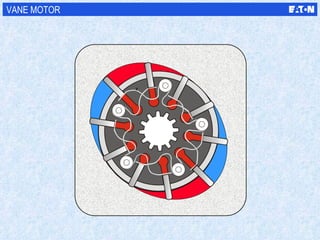

- 24. VANE MOTOR

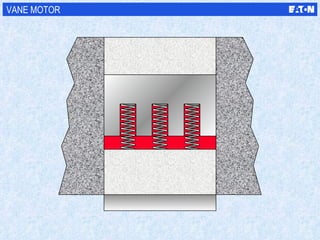

- 25. VANE MOTOR
- 26. VANE MOTOR

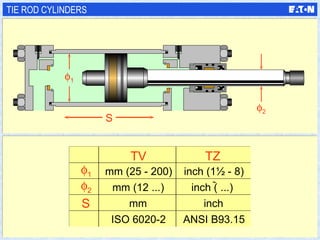

- 28. TV mm (25 - 200) mm (12 ...) mm ISO 6020-2 1 2 S TZ inch (1½ - 8) inch ( ...) inch ANSI B93.15 TIE ROD CYLINDERS 1 2 S

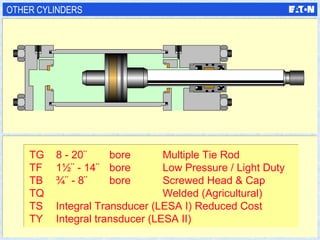

- 29. TG 8 - 20¨ bore Multiple Tie Rod TF 1½¨ - 14¨ bore Low Pressure / Light Duty TB ¾¨ - 8¨ bore Screwed Head & Cap TQ Welded (Agricultural) TS Integral Transducer (LESA I) Reduced Cost TY Integral transducer (LESA II) OTHER CYLINDERS

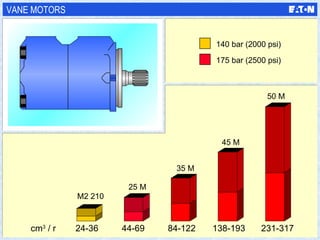

- 30. VANE MOTORS 140 bar (2000 psi) 175 bar (2500 psi) M2 210 25 M 35 M 45 M 50 M 24-36 44-69 cm 3 / r 84-122 138-193 231-317

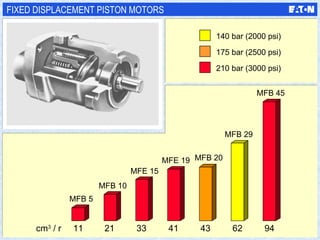

- 31. FIXED DISPLACEMENT PISTON MOTORS 140 bar (2000 psi) 175 bar (2500 psi) 210 bar (3000 psi) MFB 5 MFB 10 MFE 15 MFE 19 MFB 20 MFB 29 MFB 45 11 21 33 41 43 62 94 cm 3 / r

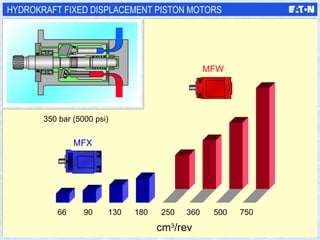

- 32. 350 bar (5000 psi) HYDROKRAFT FIXED DISPLACEMENT PISTON MOTORS 360 cm 3 /rev 500 750 66 90 130 180 250 MFX MFW

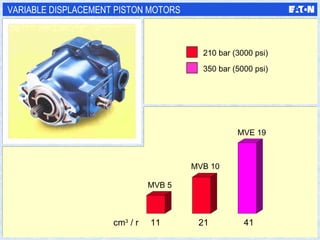

- 33. VARIABLE DISPLACEMENT PISTON MOTORS 210 bar (3000 psi) 350 bar (5000 psi) MVB 5 MVB 10 MVE 19 11 21 41 cm 3 / r

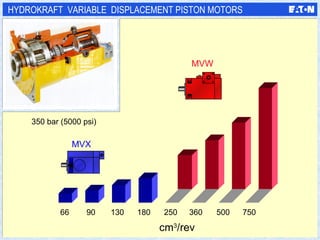

- 34. 350 bar (5000 psi) HYDROKRAFT VARIABLE DISPLACEMENT PISTON MOTORS MF MVX MFS MVW cm 3 /rev 360 500 750 66 90 130 180 250
- 35. Jackson Greenwood MANUFACTURING LOCATIONS - USA Rockford
- 36. MANUFACTURING LOCATIONS - HOLLAND Eindhoven
- 37. MANUFACTURING LOCATIONS - GERMANY Wehrheim
- 38. ACTUATORS Copyright Eaton Hydraulics 2000 Steve Skinner, Eaton Hydraulics, Havant, UK
