General register organization (computer organization)

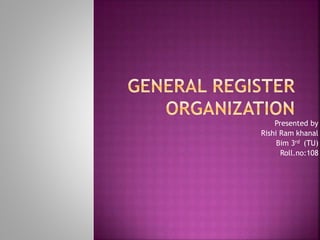

- 1. Presented by Rishi Ram khanal Bim 3rd (TU) Roll.no:108

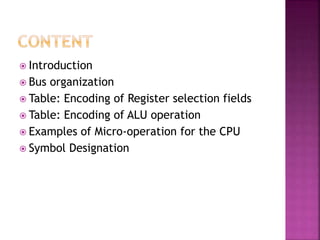

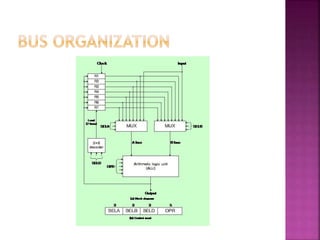

- 2. Introduction Bus organization Table: Encoding of Register selection fields Table: Encoding of ALU operation Examples of Micro-operation for the CPU Symbol Designation

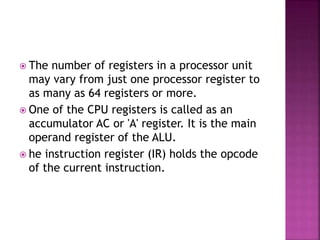

- 3. The number of registers in a processor unit may vary from just one processor register to as many as 64 registers or more. One of the CPU registers is called as an accumulator AC or 'A' register. It is the main operand register of the ALU. he instruction register (IR) holds the opcode of the current instruction.

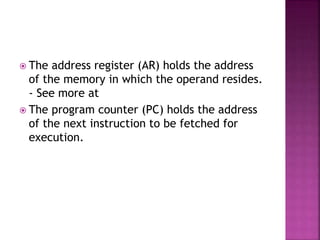

- 4. The address register (AR) holds the address of the memory in which the operand resides. - See more at The program counter (PC) holds the address of the next instruction to be fetched for execution.

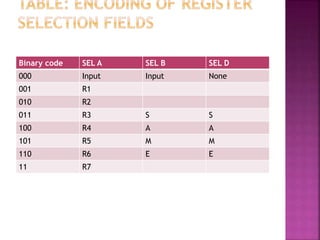

- 6. Binary code SEL A SEL B SEL D 000 Input Input None 001 R1 010 R2 011 R3 S S 100 R4 A A 101 R5 M M 110 R6 E E 11 R7
- 7. OPR and select Operation Symbol 00000 Transfer A TSFA 00001 Increment A INCA 00010 Add A + B ADD 00101 Subtract A-B SUB 00110 Decrement A DEC A 01000 AND A and B AND 01010 OR A and B OR 01100 XOR A and B XOR 01110 Complement A COMA 10000 Shift right A SHRA 11000 Shift left A SHLA

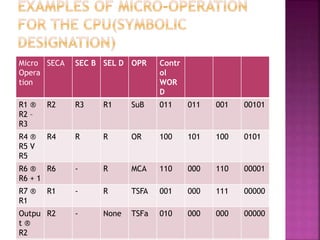

- 8. Micro Opera tion SECA SEC B SEL D OPR Contr ol WOR D R1 ® R2 – R3 R2 R3 R1 SuB 011 011 001 00101 R4 ® R5 V R5 R4 R R OR 100 101 100 0101 R6 ® R6 + 1 R6 - R MCA 110 000 110 00001 R7 ® R1 R1 - R TSFA 001 000 111 00000 Outpu t ® R2 R2 - None TSFa 010 000 000 00000
