The document outlines the architecture and functionalities of Apache Airflow for managing data pipelines, emphasizing its advantages over traditional cron jobs, such as task dependency management, scalability, and error recovery. It discusses various strategies for implementing sub-DAGs, monitoring tasks, and scheduling best practices to optimize workflow efficiency. Additionally, it provides use cases for enhancing task execution and management, such as skipping unnecessary calculations and programatically clearing past DAG runs.
Fyber - airflow best practices in production
- 1. Airflow Production tales Eran Shemesh - Senior Big Data Developer

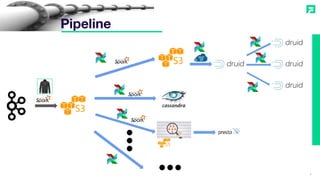

- 2. 2 Pipeline

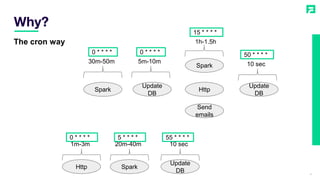

- 4. Why? 4 Spark Update DB Http Spark Update DB Send emails Http Spark Update DB 30m-50m 5m-10m 1h-1.5h 10 sec 1m-3m 20m-40m 10 sec The cron way 0 * * * * 0 * * * * 15 * * * * 50 * * * * 0 * * * * 5 * * * * 55 * * * *

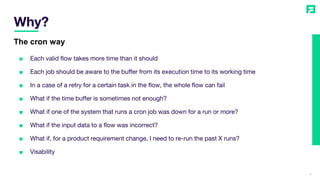

- 5. Why? 5 The cron way ■ Each valid flow takes more time than it should ■ Each job should be aware to the buffer from its execution time to its working time ■ In a case of a retry for a certain task in the flow, the whole flow can fail ■ What if the time buffer is sometimes not enough? ■ What if one of the system that runs a cron job was down for a run or more? ■ What if the input data to a flow was incorrect? ■ What if, for a product requirement change, I need to re-run the past X runs? ■ Visability

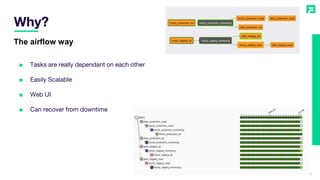

- 6. Why? 6 The airflow way ■ Tasks are really dependant on each other ■ Easily Scalable ■ Web UI ■ Can recover from downtime

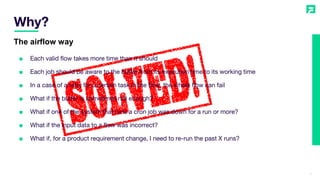

- 7. ■ Each valid flow takes more time than it should ■ Each job should be aware to the buffer from its execution time to its working time ■ In a case of a retry for a certain task in the flow, the whole flow can fail ■ What if the buffer is sometimes not enough? ■ What if one of the system that runs a cron job was down for a run or more? ■ What if the input data to a flow was incorrect? ■ What if, for a product requirement change, I need to re-run the past X runs? Why? 7 The airflow way

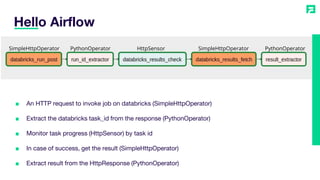

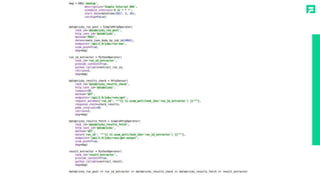

- 8. ■ An HTTP request to invoke job on databricks (SimpleHttpOperator) ■ Extract the databricks task_id from the response (PythonOperator) ■ Monitor task progress (HttpSensor) by task id ■ In case of success, get the result (SimpleHttpOperator) ■ Extract result from the HttpResponse (PythonOperator) Hello Airflow SimpleHttpOperator PythonOperator HttpSensor SimpleHttpOperator PythonOperator

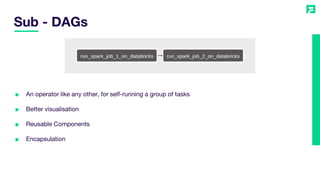

- 11. ■ An operator like any other, for self-running a group of tasks ■ Better visualisation ■ Reusable Components ■ Encapsulation Sub - DAGs

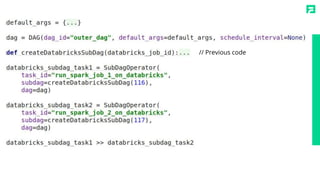

- 12. // Previous code

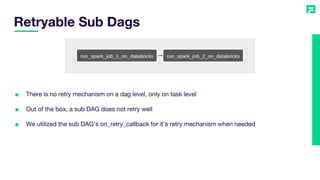

- 13. ■ There is no retry mechanism on a dag level, only on task level ■ Out of the box, a sub DAG does not retry well ■ We utilized the sub DAG’s on_retry_callback for it’s retry mechanism when needed Retryable Sub Dags

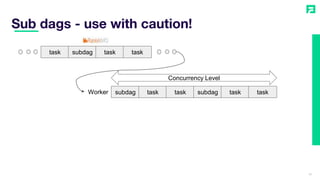

- 15. Sub dags - use with caution! 15 subdag task task subdag task taskWorker Concurrency Level task subdag task task

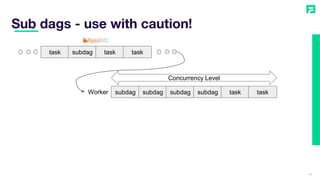

- 16. Sub dags - use with caution! 16 subdag subdag subdag subdag task taskWorker Concurrency Level task subdag task task
- 17. Sub dags - use with caution! 17 subdag subdag subdag subdag subdag subdagWorker Concurrency Level task subdag task task

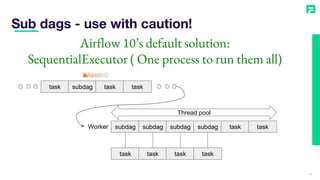

- 18. Sub dags - use with caution! 18 subdag subdag subdag subdag task taskWorker Thread pool task subdag task task task task task task Airflow 10’s default solution: SequentialExecutor ( One process to run them all)

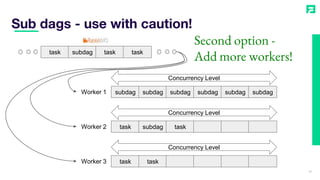

- 19. Sub dags - use with caution! 19 subdag subdag subdag subdag subdag subdagWorker 1 Concurrency Level task subdag task task task subdag taskWorker 2 Concurrency Level task taskWorker 3 Concurrency Level Second option - Add more workers!
- 21. 21 Pipeline

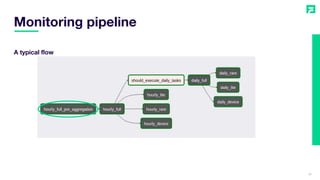

- 22. Monitoring pipeline 22 A typical flow

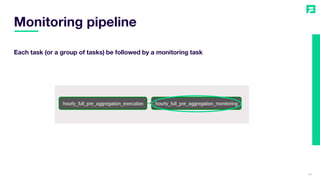

- 23. Monitoring pipeline 23 Each task (or a group of tasks) be followed by a monitoring task

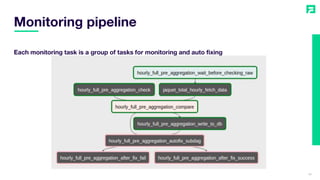

- 24. Monitoring pipeline 24 Each monitoring task is a group of tasks for monitoring and auto fixing

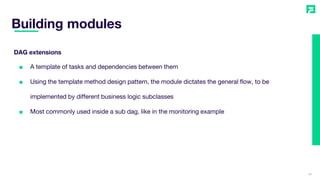

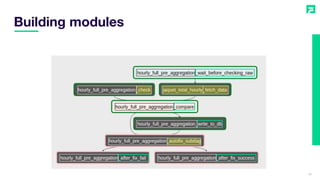

- 26. Building modules 26 ■ A template of tasks and dependencies between them ■ Using the template method design pattern, the module dictates the general flow, to be implemented by different business logic subclasses ■ Most commonly used inside a sub dag, like in the monitoring example DAG extensions

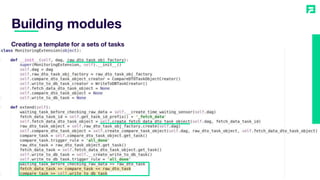

- 27. Building modules 27 Creating a template for a sets of tasks

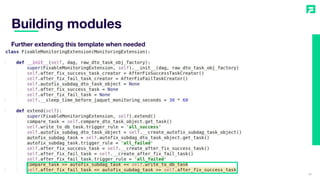

- 28. Building modules 28 Further extending this template when needed

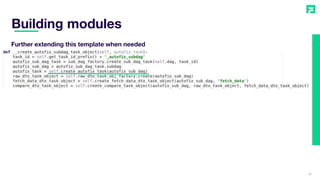

- 29. Building modules 29 Further extending this template when needed

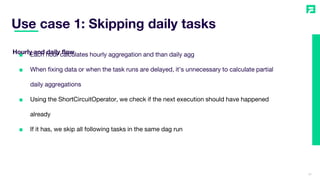

- 31. Use case 1: Skipping daily tasks 31 ■ Each hour calculates hourly aggregation and than daily agg ■ When fixing data or when the task runs are delayed, it’s unnecessary to calculate partial daily aggregations ■ Using the ShortCircuitOperator, we check if the next execution should have happened already ■ If it has, we skip all following tasks in the same dag run Hourly and daily flow

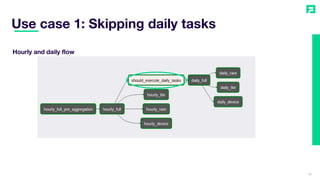

- 32. 32 Use case 1: Skipping daily tasks Hourly and daily flow

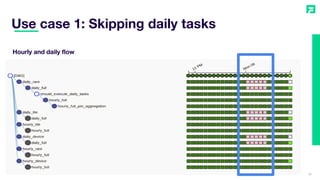

- 33. 33 Use case 1: Skipping daily tasks Hourly and daily flow

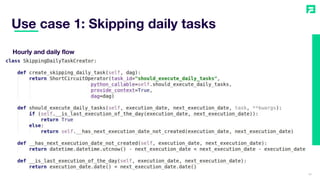

- 34. Use case 1: Skipping daily tasks 34 Hourly and daily flow

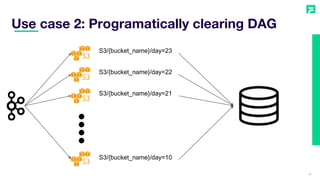

- 35. Use case 2: Programatically clearing DAG 35 S3/{bucket_name}/day=23 S3/{bucket_name}/day=22 S3/{bucket_name}/day=21 S3/{bucket_name}/day=10

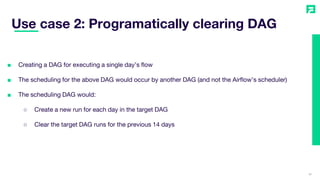

- 36. 36 ■ Creating a DAG for executing a single day’s flow ■ The scheduling for the above DAG would occur by another DAG (and not the Airflow’s scheduler) ■ The scheduling DAG would: ○ Create a new run for each day in the target DAG ○ Clear the target DAG runs for the previous 14 days Use case 2: Programatically clearing DAG

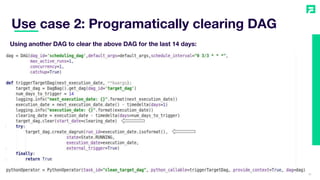

- 37. 37 Using another DAG to clear the above DAG for the last 14 days: Use case 2: Programatically clearing DAG

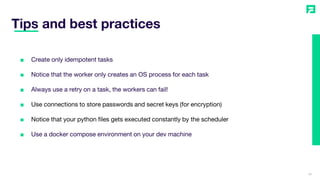

- 39. Tips and best practices 39 ■ Create only idempotent tasks ■ Notice that the worker only creates an OS process for each task ■ Always use a retry on a task, the workers can fail! ■ Use connections to store passwords and secret keys (for encryption) ■ Notice that your python files gets executed constantly by the scheduler ■ Use a docker compose environment on your dev machine
- 40. Thanks!
