CSS Grid Layout
Rachel Andrew
An Event Apart Boston, May 2016
https://www.ﬂickr.com/photos/djprmf/15495738517

Rachel Andrew
rachelandrew.co.uk
@rachelandrew
grabaperch.com

Falling Cubes by Gregor Adams CSS3 Working Clock by Ilia

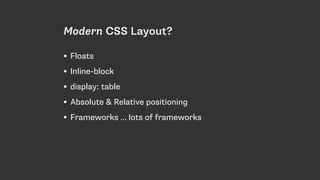

Modern CSS Layout?
• Floats
• Inline-block
• display: table
• Absolute & Relative positioning
• Frameworks … lots of frameworks

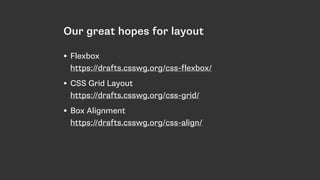

Our great hopes for layout
• Flexbox 
https://drafts.csswg.org/css-flexbox/
• CSS Grid Layout 
https://drafts.csswg.org/css-grid/
• Box Alignment 
https://drafts.csswg.org/css-align/

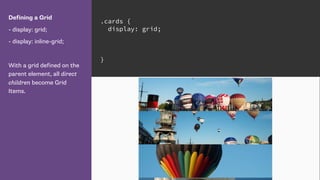

Defining a Grid
- display: grid;
- display: inline-grid;
With a grid defined on the
parent element, all direct
children become Grid
Items.
.cards {
display: grid;
}

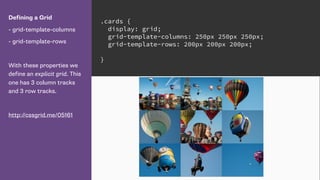

Defining a Grid
- grid-template-columns
- grid-template-rows
With these properties we
define an explicit grid. This
one has 3 column tracks
and 3 row tracks.
http://cssgrid.me/05161
.cards {
display: grid;
grid-template-columns: 250px 250px 250px;
grid-template-rows: 200px 200px 200px;
}

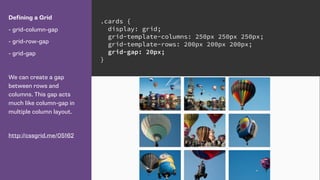

Defining a Grid
- grid-column-gap
- grid-row-gap
- grid-gap
We can create a gap
between rows and
columns. This gap acts
much like column-gap in
multiple column layout.
.cards {
display: grid;
grid-template-columns: 250px 250px 250px;
grid-gap: 20px;
}

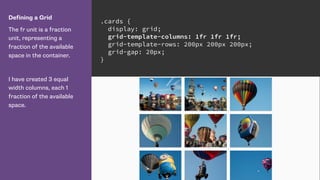

Defining a Grid
The fr unit is a fraction
unit, representing a
fraction of the available
space in the container.
I have created 3 equal
width columns, each 1
space.
.cards {
display: grid;
grid-template-columns: 1fr 1fr 1fr;
grid-gap: 20px;
}

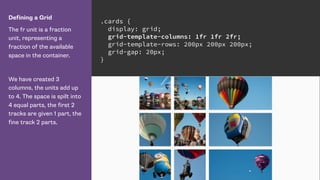

Defining a Grid
We have created 3
columns, the units add up
to 4. The space is spilt into
4 equal parts, the first 2
tracks are given 1 part, the
fine track 2 parts.
.cards {
display: grid;
grid-template-columns: 1fr 1fr 2fr;
grid-gap: 20px;
}

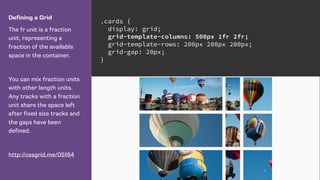

Defining a Grid
You can mix fraction units
with other length units.
Any tracks with a fraction
unit share the space left
after fixed size tracks and
the gaps have been
defined.
.cards {
display: grid;
grid-template-columns: 500px 1fr 2fr;
grid-gap: 20px;
}

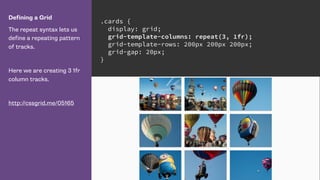

Defining a Grid
The repeat syntax lets us
define a repeating pattern
of tracks.
Here we are creating 3 1fr
column tracks.
.cards {
display: grid;
grid-template-columns: repeat(3, 1fr);
grid-gap: 20px;
}

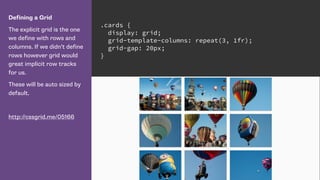

Defining a Grid
The explicit grid is the one
we define with rows and
columns. If we didn’t define
rows however grid would
great implicit row tracks
for us.
These will be auto sized by
default.
.cards {
display: grid;
grid-gap: 20px;
}

Defining a Grid
We can define the size of
implicit rows and column
with the properties:
- grid-auto-rows
- grid-auto-columns
.cards {
display: grid;
grid-auto-rows: 200px;
grid-gap: 20px;
}

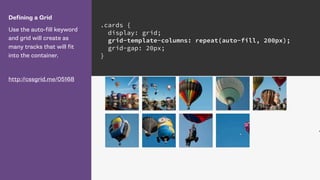

Defining a Grid
Use the auto-fill keyword
and grid will create as
many tracks that will fit
into the container.
.cards {
display: grid;
grid-template-columns: repeat(auto-fill, 200px);
grid-gap: 20px;
}

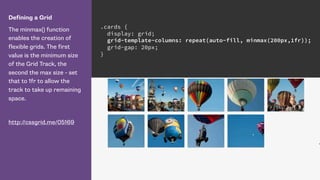

Defining a Grid
The minmax() function
enables the creation of
flexible grids. The first
value is the minimum size
of the Grid Track, the
second the max size - set
that to 1fr to allow the
track to take up remaining
space.
.cards {
display: grid;
grid-template-columns: repeat(auto-fill, minmax(200px,1fr));
grid-gap: 20px;
}

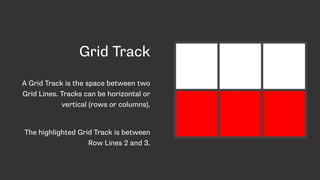

Grid Track
A Grid Track is the space between two
Grid Lines. Tracks can be horizontal or
vertical (rows or columns).
The highlighted Grid Track is between
Row Lines 2 and 3.

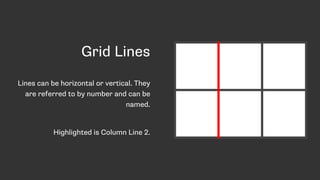

Grid Lines
Lines can be horizontal or vertical. They
are referred to by number and can be
named.
Highlighted is Column Line 2.

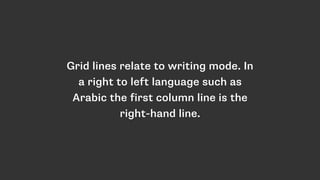

Grid lines relate to writing mode. In
a right to left language such as
Arabic the first column line is the
right-hand line.

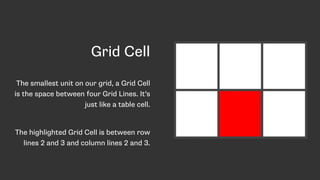

Grid Cell
The smallest unit on our grid, a Grid Cell
is the space between four Grid Lines. It’s
just like a table cell.
The highlighted Grid Cell is between row
lines 2 and 3 and column lines 2 and 3.

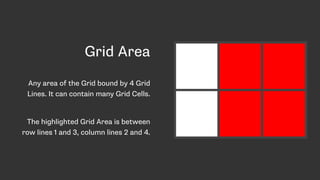

Grid Area
Any area of the Grid bound by 4 Grid
Lines. It can contain many Grid Cells.
The highlighted Grid Area is between
row lines 1 and 3, column lines 2 and 4.

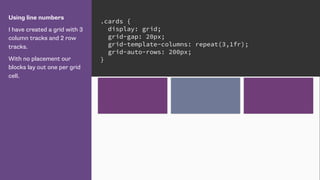

Using line numbers
I have created a grid with 3
column tracks and 2 row
tracks.
With no placement our
blocks lay out one per grid
cell.
.cards {
display: grid;
grid-gap: 20px;
grid-template-columns: repeat(3,1fr);
grid-auto-rows: 200px;
}

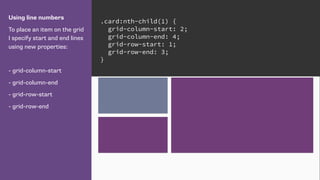

Using line numbers
To place an item on the grid
I specify start and end lines
using new properties:
- grid-column-start
- grid-column-end
- grid-row-start
- grid-row-end
.card:nth-child(1) {
grid-column-start: 2;
grid-column-end: 4;
grid-row-start: 1;
grid-row-end: 3;
}

Using line numbers
These can be expressed as
a shorthand:
- grid-column
- grid-row
grid-column: 2 / 4;
grid-row: 1 / 3;
}

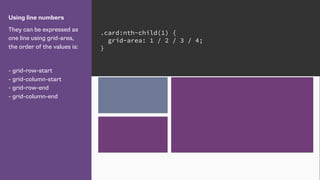

Using line numbers
They can be expressed as
one line using grid-area,
the order of the values is:
- grid-row-start
- grid-column-start
- grid-row-end
- grid-column-end
grid-area: 1 / 2 / 3 / 4;
}

Using line names
We name lines when
creating the grid. The name
goes in square brackets.
.cards {
display: grid;
grid-gap: 20px;
grid-template-columns: [side-start] 1fr
[main-start] 1fr 1fr
[main-end];
grid-template-rows: [main-start] 200px 200px
[main-end];
}

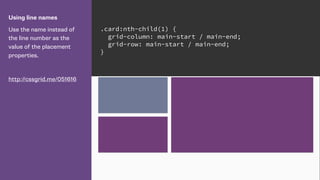

Using line names
Use the name instead of
the line number as the
value of the placement
properties.
grid-column: main-start / main-end;
grid-row: main-start / main-end;
}

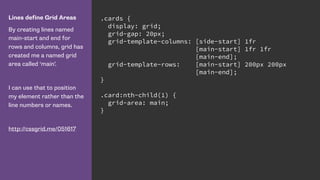

Lines define Grid Areas
By creating lines named
main-start and end for
rows and columns, grid has
created me a named grid
area called ‘main’.
I can use that to position
my element rather than the
line numbers or names.
.cards {
display: grid;
grid-gap: 20px;
grid-template-columns: [side-start] 1fr
[main-start] 1fr 1fr
[main-end];
grid-template-rows: [main-start] 200px 200px
[main-end];
}
grid-area: main;
}

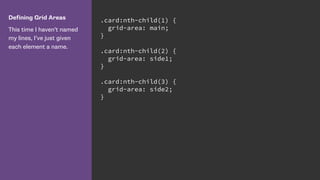

Defining Grid Areas
This time I haven’t named
my lines, I’ve just given
each element a name.
grid-area: main;
}
grid-area: side1;
}
grid-area: side2;
}

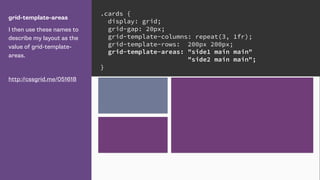

grid-template-areas
I then use these names to
describe my layout as the
value of grid-template-
areas.
.cards {
display: grid;
grid-gap: 20px;
grid-template-rows: 200px 200px;
grid-template-areas: "side1 main main"
"side2 main main";
}

CSS Grid Layout: An Event Apart Boston 2016

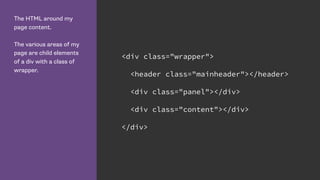

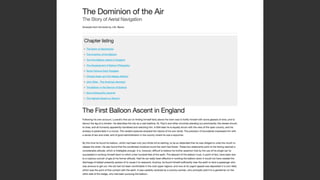

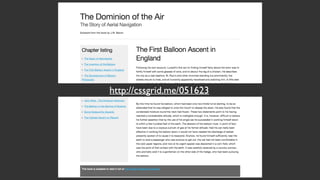

The HTML around my
page content.
The various areas of my
page are child elements
of a div with a class of
wrapper.
<div class="wrapper">
<header class="mainheader"></header>
<div class="panel"></div>
<div class="content"></div>
</div>

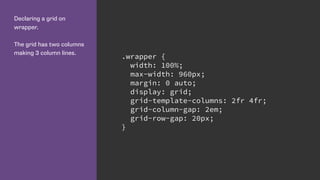

Declaring a grid on
wrapper.
The grid has two columns
making 3 column lines.
.wrapper {
width: 100%;
max-width: 960px;
margin: 0 auto;
display: grid;
grid-template-columns: 2fr 4fr;
grid-column-gap: 2em;
grid-row-gap: 20px;
}

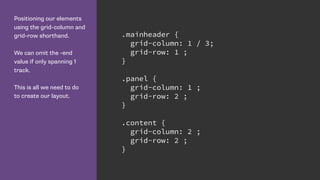

Positioning our elements
using the grid-column and
grid-row shorthand.
We can omit the -end
value if only spanning 1
track.
This is all we need to do
to create our layout.
.mainheader {
grid-column: 1 / 3;
grid-row: 1 ;
}
.panel {
grid-column: 1 ;
grid-row: 2 ;
}
.content {
grid-column: 2 ;
grid-row: 2 ;
}

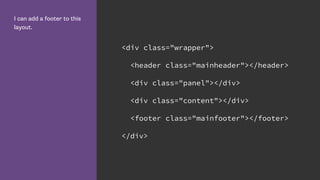

I can add a footer to this
layout.
<header class="mainheader"></header>
<div class="panel"></div>
<div class="content"></div>
<footer class="mainfooter"></footer>
</div>

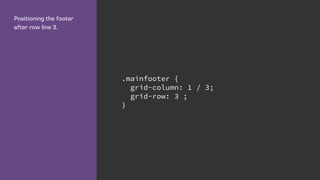

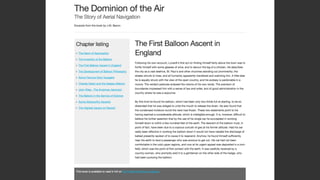

Positioning the footer
after row line 3.
.mainfooter {
grid-column: 1 / 3;
grid-row: 3 ;
}

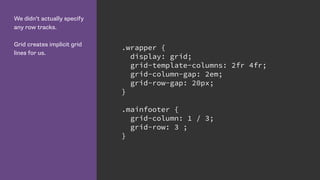

We didn’t actually specify
any row tracks.
Grid creates implicit grid
lines for us.
.wrapper {
display: grid;
grid-row-gap: 20px;
}
.mainfooter {
grid-column: 1 / 3;
grid-row: 3 ;
}

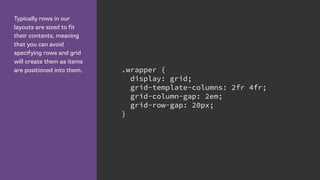

Typically rows in our
layouts are sized to fit
their contents, meaning
that you can avoid
specifying rows and grid
will create them as items
are positioned into them. .wrapper {
display: grid;
grid-row-gap: 20px;
}

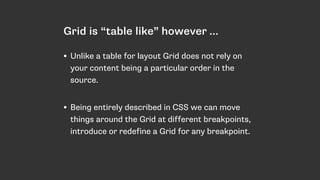

Grid is “table like” however …
• Unlike a table for layout Grid does not rely on
your content being a particular order in the
source. 

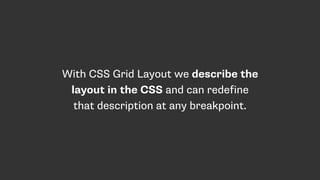

• Being entirely described in CSS we can move
things around the Grid at different breakpoints,
introduce or redefine a Grid for any breakpoint.

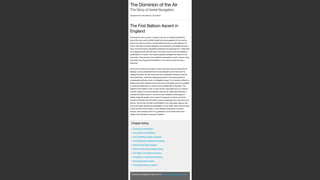

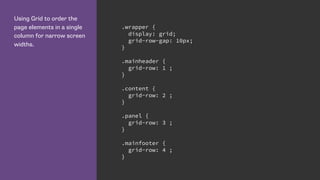

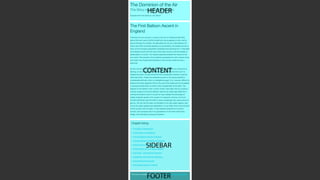

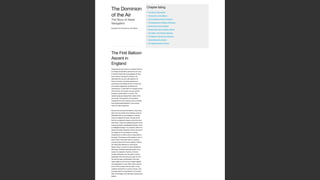

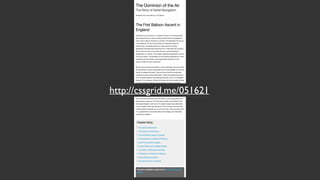

Using Grid to order the
page elements in a single
column for narrow screen
widths.
.wrapper {
display: grid;
grid-row-gap: 10px;
}
.mainheader {
grid-row: 1 ;
}
.content {
grid-row: 2 ;
}
.panel {
grid-row: 3 ;
}
.mainfooter {
grid-row: 4 ;
}

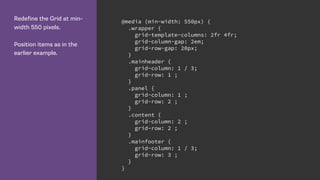

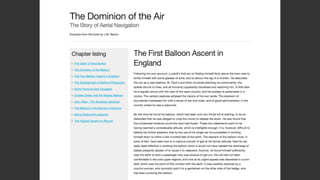

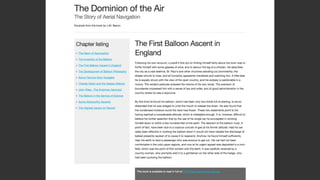

Redefine the Grid at min-
width 550 pixels.
Position items as in the
earlier example.
@media (min-width: 550px) {
.wrapper {
grid-row-gap: 20px;
}
.mainheader {
grid-column: 1 / 3;
grid-row: 1 ;
}
.panel {
grid-column: 1 ;
grid-row: 2 ;
}
.content {
grid-column: 2 ;
grid-row: 2 ;
}
.mainfooter {
grid-column: 1 / 3;
grid-row: 3 ;
}
}

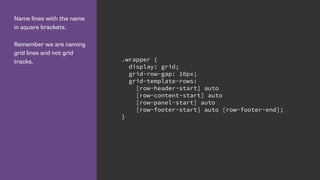

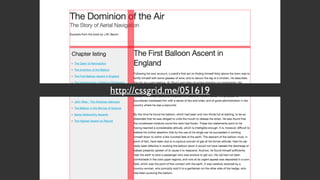

Name lines with the name
in square brackets.
Remember we are naming
grid lines and not grid
tracks. .wrapper {
display: grid;
grid-row-gap: 10px;
grid-template-rows:
[row-header-start] auto
[row-content-start] auto
[row-panel-start] auto
[row-footer-start] auto [row-footer-end];
}

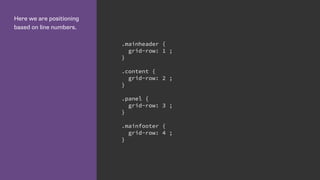

Here we are positioning
based on line numbers.
.mainheader {
grid-row: 1 ;
}
.content {
grid-row: 2 ;
}
.panel {
grid-row: 3 ;
}
.mainfooter {
grid-row: 4 ;
}

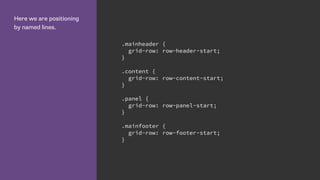

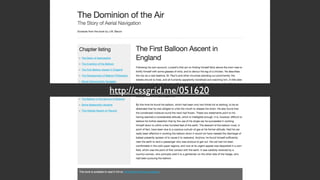

Here we are positioning
by named lines.
.mainheader {
grid-row: row-header-start;
}
.content {
grid-row: row-content-start;
}
.panel {
grid-row: row-panel-start;
}
.mainfooter {
grid-row: row-footer-start;
}

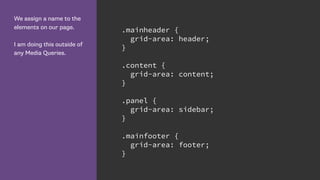

We assign a name to the
elements on our page.
I am doing this outside of
any Media Queries.
.mainheader {
grid-area: header;
}
.content {
grid-area: content;
}
.panel {
grid-area: sidebar;
}
.mainfooter {
grid-area: footer;
}

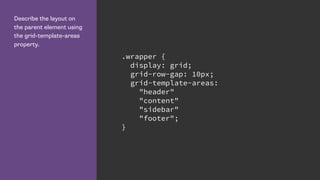

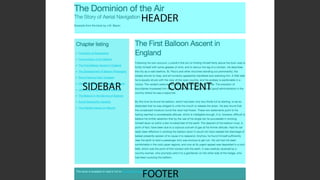

Describe the layout on
the parent element using
the grid-template-areas
property.
.wrapper {
display: grid;
grid-row-gap: 10px;
grid-template-areas:
"header"
"content"
"sidebar"
"footer";
}

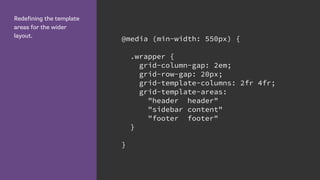

Redefining the template
areas for the wider
layout.
.wrapper {
grid-row-gap: 20px;
"header header"
"sidebar content"
"footer footer"
}
}

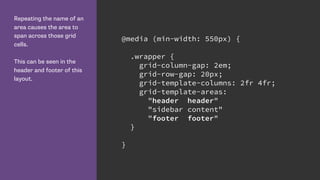

Repeating the name of an
area causes the area to
span across those grid
cells.
This can be seen in the
header and footer of this
layout.
.wrapper {
grid-row-gap: 20px;
"header header"
"sidebar content"
"footer footer"
}
}

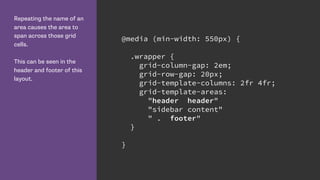

Repeating the name of an
area causes the area to
span across those grid
cells.
This can be seen in the
header and footer of this
layout.
.wrapper {
grid-row-gap: 20px;
"header header"
"sidebar content"
" . footer"
}
}

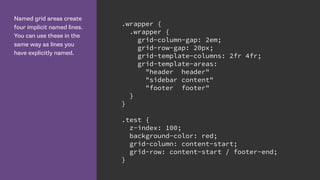

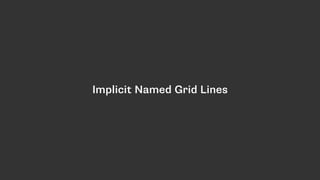

Named grid areas create
four implicit named lines.
You can use these in the
same way as lines you
have explicitly named.
.wrapper {
.wrapper {
grid-row-gap: 20px;
"header header"
"sidebar content"
"footer footer"
}
}

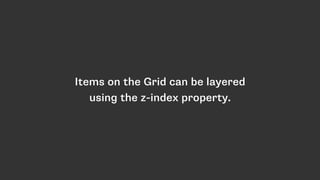

.test {
z-index: 100;
background-color: red;
grid-column: content-start;
grid-row: content-start / footer-end;
}

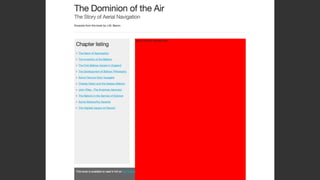

Items on the Grid can be layered
using the z-index property.

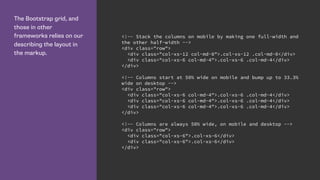

The Bootstrap grid, and
those in other
frameworks relies on our
describing the layout in
the markup.

<div class="row">
<div class="col-xs-12 col-md-8">.col-xs-12 .col-md-8</div>
</div>

<div class="row">
</div>

<div class="row">
<div class="col-xs-6">.col-xs-6</div>
<div class="col-xs-6">.col-xs-6</div>
</div>

With CSS Grid Layout we describe the
layout in the CSS and can redefine
that description at any breakpoint.

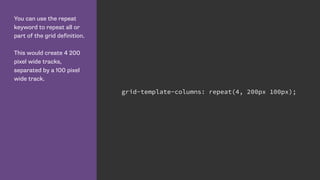

You can use the repeat
keyword to repeat all or
part of the grid definition.
This would create 4 200
pixel wide tracks,
separated by a 100 pixel
wide track.
grid-template-columns: repeat(4, 200px 100px);

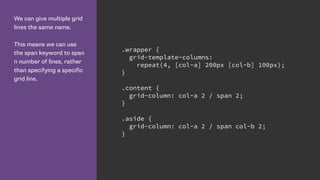

We can give multiple grid
lines the same name.
This means we can use
the span keyword to span
n number of lines, rather
than specifying a specific
grid line.
.wrapper {
grid-template-columns:
repeat(4, [col-a] 200px [col-b] 100px);
}
.content {
grid-column: col-a 2 / span 2;
}
.aside {
grid-column: col-a 2 / span col-b 2;
}

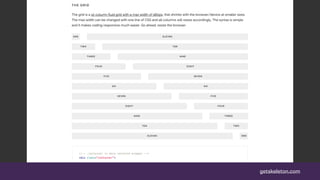

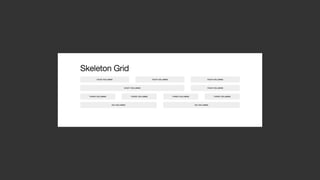

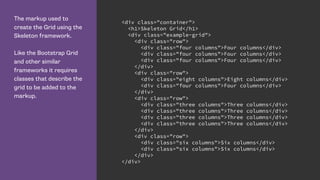

The markup used to
create the Grid using the
Skeleton framework.
Like the Bootstrap Grid
and other similar
frameworks it requires
classes that describe the
grid to be added to the
markup.
<div class="container">
<h1>Skeleton Grid</h1>
<div class="example-grid">
<div class="row">
<div class="four columns">Four columns</div>
</div>
<div class="row">
<div class="eight columns">Eight columns</div>
</div>
<div class="row">
<div class="three columns">Three columns</div>
</div>
<div class="row">
<div class="six columns">Six columns</div>
<div class="six columns">Six columns</div>
</div>
</div>

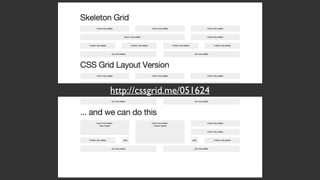

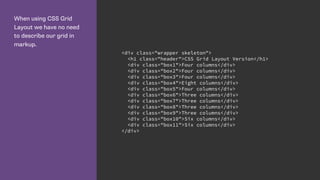

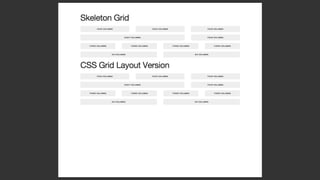

When using CSS Grid
Layout we have no need
to describe our grid in
markup.
<div class="wrapper skeleton">
<h1 class="header">CSS Grid Layout Version</h1>
<div class="box1">Four columns</div>
<div class="box4">Eight columns</div>
<div class="box6">Three columns</div>
<div class="box10">Six columns</div>
<div class="box11">Six columns</div>
</div>

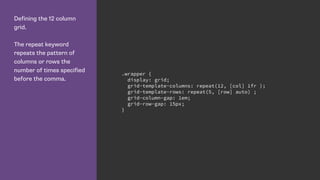

Defining the 12 column
grid.
The repeat keyword
repeats the pattern of
columns or rows the
number of times specified
before the comma.
.wrapper {
display: grid;
grid-template-columns: repeat(12, [col] 1fr );
grid-template-rows: repeat(5, [row] auto) ;
grid-row-gap: 15px;
}

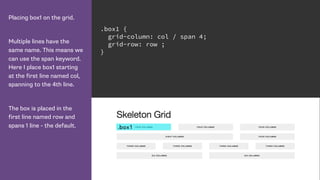

Placing box1 on the grid.
Multiple lines have the
same name. This means we
can use the span keyword.
Here I place box1 starting
at the first line named col,
spanning to the 4th line.
The box is placed in the
first line named row and
spans 1 line - the default.
.box1 {
grid-column: col / span 4;
grid-row: row ;
}

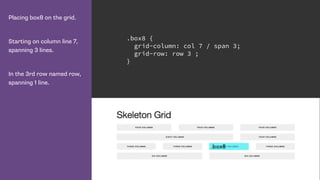

Placing box8 on the grid.
Starting on column line 7,
spanning 3 lines.
In the 3rd row named row,
spanning 1 line.
.box8 {
grid-column: col 7 / span 3;
grid-row: row 3 ;
}

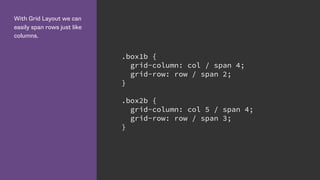

With Grid Layout we can
easily span rows just like
columns.
.box1b {
grid-row: row / span 2;
}
.box2b {
grid-row: row / span 3;
}

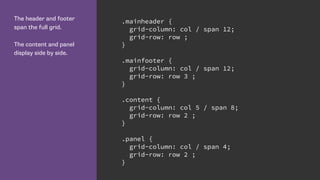

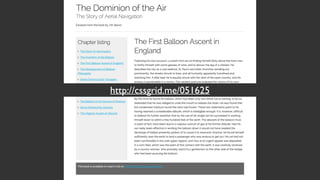

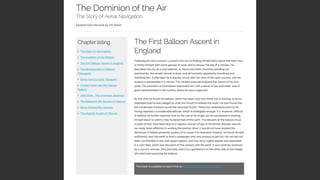

The header and footer
span the full grid.
The content and panel
display side by side.
.mainheader {
grid-row: row ;
}
.mainfooter {
grid-row: row 3 ;
}
.content {
grid-row: row 2 ;
}
.panel {
grid-row: row 2 ;
}

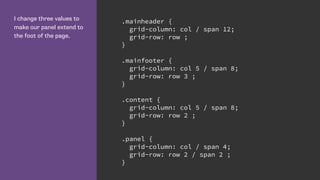

I change three values to
make our panel extend to
the foot of the page.
.mainheader {
grid-row: row ;
}
.mainfooter {
grid-row: row 3 ;
}
.content {
grid-row: row 2 ;
}
.panel {
grid-row: row 2 / span 2 ;
}

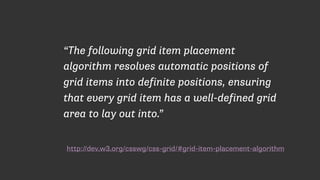

http://dev.w3.org/csswg/css-grid/#grid-item-placement-algorithm
“The following grid item placement
algorithm resolves automatic positions of
grid items into definite positions, ensuring
that every grid item has a well-defined grid
area to lay out into.”

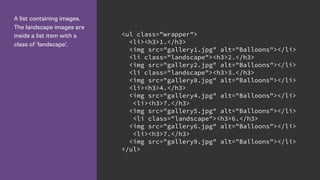

A list containing images.
The landscape images are
inside a list item with a
class of ‘landscape’.
<ul class="wrapper">
<li><h3>1.</h3>
<img src="gallery1.jpg" alt="Balloons"></li>
<li class="landscape"><h3>2.</h3>
<li><h3>4.</h3>
<li><h3>7.</h3>
<li><h3>7.</h3>
</ul>

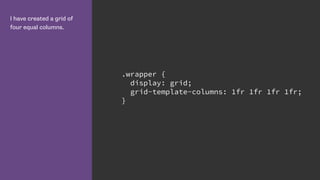

I have created a grid of
four equal columns.
.wrapper {
display: grid;
grid-template-columns: 1fr 1fr 1fr 1fr;
}

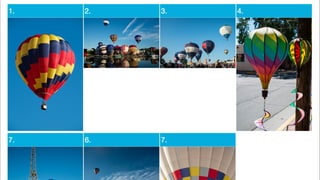

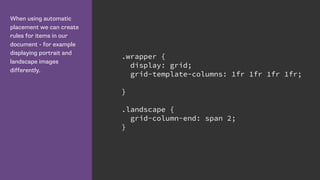

When using automatic
placement we can create
rules for items in our
document - for example
displaying portrait and
landscape images
differently.
.wrapper {
display: grid;
}
.landscape {
grid-column-end: span 2;
}

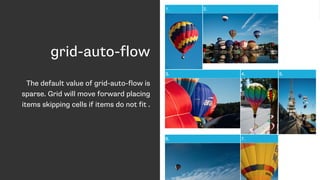

grid-auto-flow
The default value of grid-auto-flow is
sparse. Grid will move forward placing
items skipping cells if items do not fit .

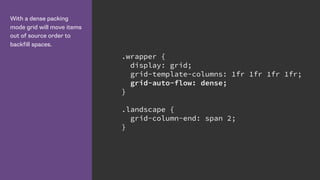

With a dense packing
mode grid will move items
out of source order to
backfill spaces.
.wrapper {
display: grid;
grid-auto-flow: dense;
}
.landscape {
grid-column-end: span 2;
}

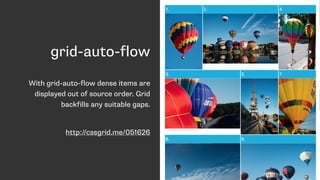

grid-auto-flow
With grid-auto-flow dense items are
displayed out of source order. Grid
backfills any suitable gaps.

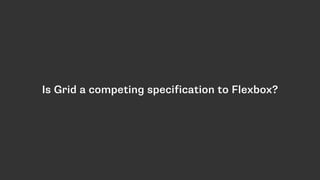

Is Grid a competing specification to Flexbox?

Grid and the Box Alignment Module

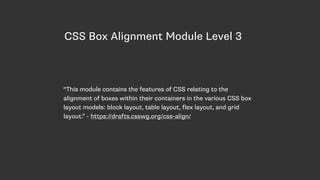

CSS Box Alignment Module Level 3
“This module contains the features of CSS relating to the
alignment of boxes within their containers in the various CSS box
layout models: block layout, table layout, flex layout, and grid
layout.” - https://drafts.csswg.org/css-align/

I can create this same
layout with flexbox or Grid.
With flexbox the items are
laid out in a row.
.wrapper {
display: flex;
}
.wrapper li {
flex: 1 0 25%;
}

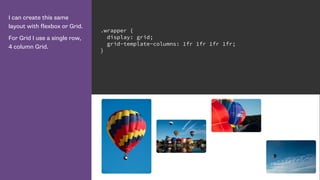

I can create this same
layout with flexbox or Grid.
For Grid I use a single row,
4 column Grid.
.wrapper {
display: grid;
}

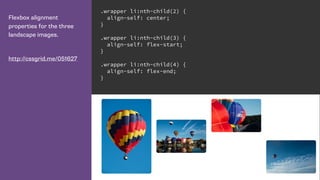

Flexbox alignment
properties for the three
landscape images.
.wrapper li:nth-child(2) {
align-self: center;
}
align-self: flex-start;
}
align-self: flex-end;
}

Grid alignment properties
for the three landscape
images.
align-self: center;
}
align-self: start;
}
align-self: end;
}

When should we use Grid instead of
Flexbox then?

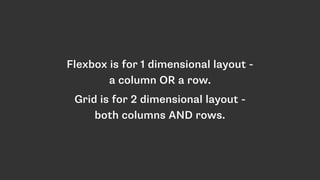

Flexbox is for 1 dimensional layout -
a column OR a row.
Grid is for 2 dimensional layout -
both columns AND rows.

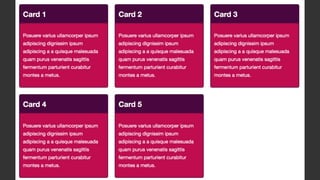

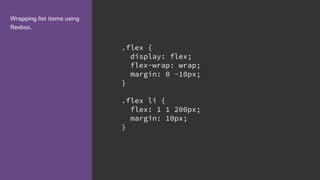

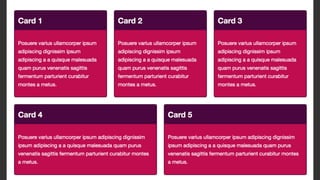

Wrapping list items using
flexbox.
.flex {
display: flex;
flex-wrap: wrap;
margin: 0 -10px;
}
.flex li {
flex: 1 1 200px;
margin: 10px;
}

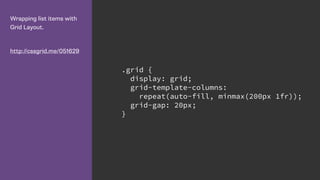

Wrapping list items with
Grid Layout.
.grid {
display: grid;
repeat(auto-fill, minmax(200px 1fr));
grid-gap: 20px;
}

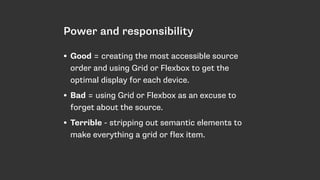

Power and responsibility
• Good = creating the most accessible source
order and using Grid or Flexbox to get the
optimal display for each device.
• Bad = using Grid or Flexbox as an excuse to
forget about the source.
• Terrible - stripping out semantic elements to
make everything a grid or flex item.

https://drafts.csswg.org/css-grid/#placement-a11y

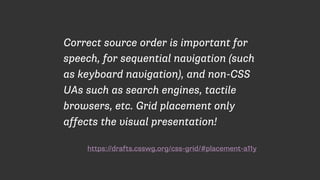

Correct source order is important for
speech, for sequential navigation (such
as keyboard navigation), and non-CSS
UAs such as search engines, tactile
browsers, etc. Grid placement only
affects the visual presentation!

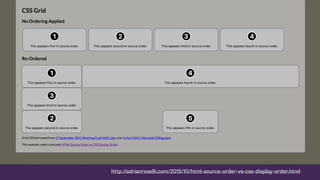

http://adrianroselli.com/2015/10/html-source-order-vs-css-display-order.html

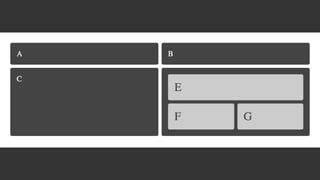

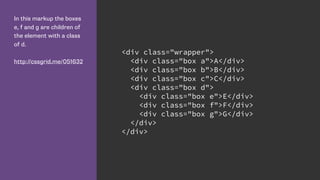

In this markup the boxes
e, f and g are children of
the element with a class
of d.
<div class="box a">A</div>
<div class="box b">B</div>
<div class="box c">C</div>
<div class="box d">
<div class="box e">E</div>
<div class="box f">F</div>
<div class="box g">G</div>
</div>
</div>

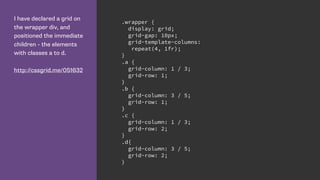

I have declared a grid on
the wrapper div, and
positioned the immediate
children - the elements
with classes a to d.
.wrapper {
display: grid;
grid-gap: 10px;
repeat(4, 1fr);
}
.a {
grid-column: 1 / 3;
grid-row: 1;
}
.b {
grid-column: 3 / 5;
grid-row: 1;
}
.c {
grid-column: 1 / 3;
grid-row: 2;
}
.d{
grid-column: 3 / 5;
grid-row: 2;
}

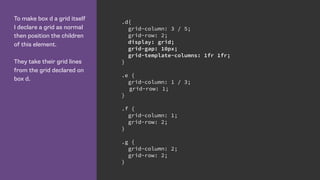

To make box d a grid itself
I declare a grid as normal
then position the children
of this element.
They take their grid lines
from the grid declared on
box d.
.d{
grid-column: 3 / 5;
grid-row: 2;
display: grid;
grid-gap: 10px;
}
.e {
grid-column: 1 / 3;
grid-row: 1;
}
.f {
grid-column: 1;
grid-row: 2;
}
.g {
grid-column: 2;
grid-row: 2;
}

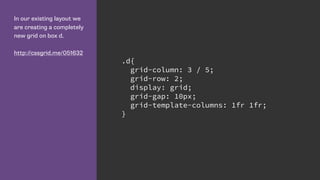

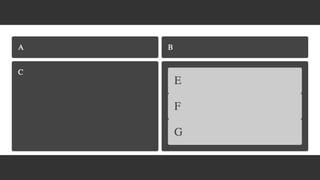

In our existing layout we
are creating a completely
new grid on box d.
.d{
grid-column: 3 / 5;
grid-row: 2;
display: grid;
grid-gap: 10px;
}

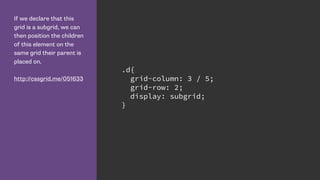

If we declare that this
grid is a subgrid, we can
then position the children
of this element on the
same grid their parent is
placed on.
.d{
grid-column: 3 / 5;
grid-row: 2;
display: subgrid;
}

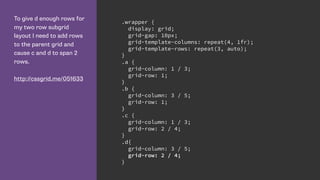

To give d enough rows for
my two row subgrid
layout I need to add rows
to the parent grid and
cause c and d to span 2
rows.
.wrapper {
display: grid;
grid-gap: 10px;
grid-template-rows: repeat(3, auto);
}
.a {
grid-column: 1 / 3;
grid-row: 1;
}
.b {
grid-column: 3 / 5;
grid-row: 1;
}
.c {
grid-column: 1 / 3;
grid-row: 2 / 4;
}
.d{
grid-column: 3 / 5;
grid-row: 2 / 4;
}

http://dev.w3.org/csswg/css-grid/
“The following features are at-risk, and may
be dropped during the CR period:
- the subgrid value”

Without subgrid we create the potential for
accessibility problems. Authors may remove
semantic markup in order to use grid layout.

Eric Meyer, http://meyerweb.com/eric/thoughts/
“Subgrids are essential to the adoption
of grids. I hope they’ll be implemented
as soon as possible, and before grids
are pushed into public release
channels.”

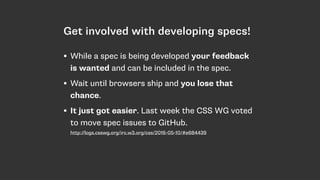

Get involved with developing specs!
• While a spec is being developed your feedback
is wanted and can be included in the spec.
• Wait until browsers ship and you lose that
chance.
• It just got easier. Last week the CSS WG voted
to move spec issues to GitHub. 
http://logs.csswg.org/irc.w3.org/css/2016-05-10/#e684439

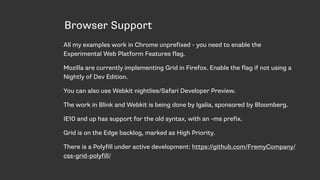

Browser Support
All my examples work in Chrome unprefixed - you need to enable the
Experimental Web Platform Features flag.
Mozilla are currently implementing Grid in Firefox. Enable the flag if not using a
Nightly of Dev Edition.
You can also use Webkit nightlies/Safari Developer Preview.
The work in Blink and Webkit is being done by Igalia, sponsored by Bloomberg.
IE10 and up has support for the old syntax, with an -ms prefix.
Grid is on the Edge backlog, marked as High Priority.
There is a Polyfill under active development: https://github.com/FremyCompany/
css-grid-polyfill/

More code!
I am creating a list of examples and information at:
http://gridbyexample.com

CSS Grid Layout: An Event Apart Boston 2016

More Related Content

What's hot (20)

Similar to CSS Grid Layout: An Event Apart Boston 2016 (20)

More from Rachel Andrew (12)

Recently uploaded (20)

CSS Grid Layout: An Event Apart Boston 2016
