Regular Expressions Performance Optimizing event capture building better Ossim Agent plugins

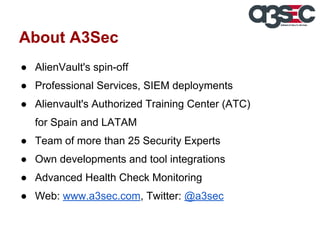

About A3Sec ● AlienVault's spin-off ● Professional Services, SIEM deployments ● Alienvault's Authorized Training Center (ATC) for Spain and LATAM ● Team of more than 25 Security Experts ● Own developments and tool integrations ● Advanced Health Check Monitoring ● Web: www.a3sec.com, Twitter: @a3sec

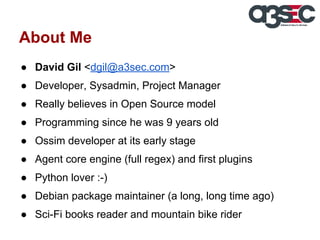

About Me ● David Gil <dgil@a3sec.com> ● Developer, Sysadmin, Project Manager ● Really believes in Open Source model ● Programming since he was 9 years old ● Ossim developer at its early stage ● Agent core engine (full regex) and first plugins ● Python lover :-) ● Debian package maintainer (a long, long time ago) ● Sci-Fi books reader and mountain bike rider

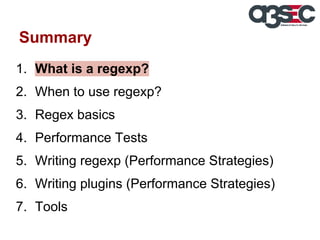

Summary 1. What is a regexp? 2. When to use regexp? 3. Regex basics 4. Performance Tests 5. Writing regexp (Performance Strategies) 6. Writing plugins (Performance Strategies) 7. Tools

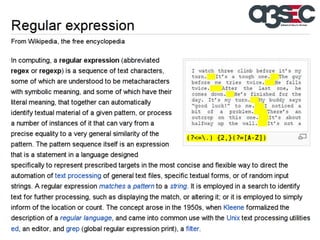

A3 sec -_regular_expressions

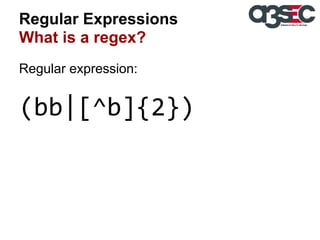

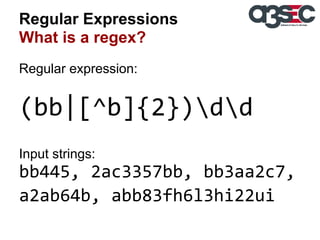

Regular Expressions What is a regex? Regular expression: (bb|[^b]{2})
Regular Expressions What is a regex? Regular expression: (bb|[^b]{2})dd Input strings: bb445, 2ac3357bb, bb3aa2c7, a2ab64b, abb83fh6l3hi22ui
Regular Expressions What is a regex? Regular expression: (bb|[^b]{2})dd Input strings: bb445, 2ac3357bb, bb3aa2c7, a2ab64b, abb83fh6l3hi22ui

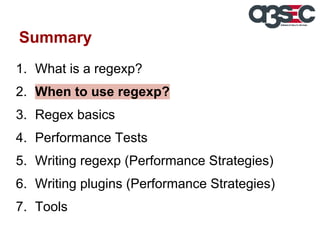

Summary 1. What is a regexp? 2. When to use regexp? 3. Regex basics 4. Performance Tests 5. Writing regexp (Performance Strategies) 6. Writing plugins (Performance Strategies) 7. Tools

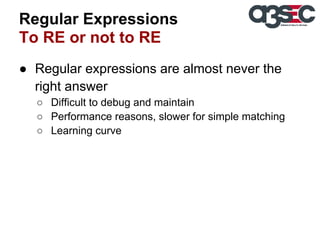

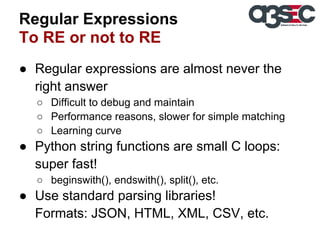

Regular Expressions To RE or not to RE ● Regular expressions are almost never the right answer ○ Difficult to debug and maintain ○ Performance reasons, slower for simple matching ○ Learning curve
Regular Expressions To RE or not to RE ● Regular expressions are almost never the right answer ○ Difficult to debug and maintain ○ Performance reasons, slower for simple matching ○ Learning curve ● Python string functions are small C loops: super fast! ○ beginswith(), endswith(), split(), etc.
Regular Expressions To RE or not to RE ● Regular expressions are almost never the right answer ○ Difficult to debug and maintain ○ Performance reasons, slower for simple matching ○ Learning curve ● Python string functions are small C loops: super fast! ○ beginswith(), endswith(), split(), etc. ● Use standard parsing libraries! Formats: JSON, HTML, XML, CSV, etc.

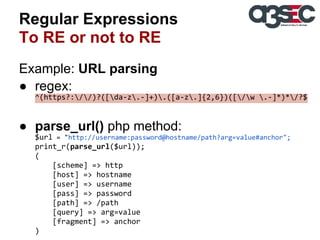

Regular Expressions To RE or not to RE Example: URL parsing ● regex: ^(https?://)?([da-z.-]+).([a-z.]{2,6})([/w .-]*)*/?$ ● parse_url() php method: $url = "http://username:password@hostname/path?arg=value#anchor"; print_r(parse_url($url)); ( [scheme] => http [host] => hostname [user] => username [pass] => password [path] => /path [query] => arg=value [fragment] => anchor )

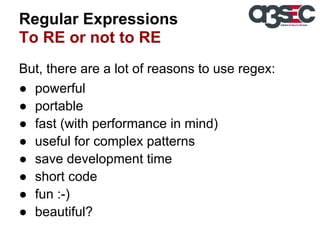

Regular Expressions To RE or not to RE But, there are a lot of reasons to use regex: ● powerful ● portable ● fast (with performance in mind) ● useful for complex patterns ● save development time ● short code ● fun :-) ● beautiful?

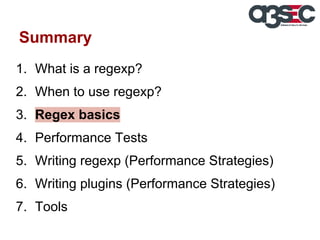

Summary 1. What is a regexp? 2. When to use regexp? 3. Regex basics 4. Performance Tests 5. Writing regexp (Performance Strategies) 6. Writing plugins (Performance Strategies) 7. Tools

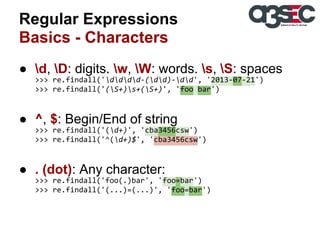

Regular Expressions Basics - Characters ● d, D: digits. w, W: words. s, S: spaces >>> re.findall('dddd-(dd)-dd', '2013-07-21') >>> re.findall('(S+)s+(S+)', 'foo bar') ● ^, $: Begin/End of string >>> re.findall('(d+)', 'cba3456csw') >>> re.findall('^(d+)$', 'cba3456csw') ● . (dot): Any character: >>> re.findall('foo(.)bar', 'foo=bar') >>> re.findall('(...)=(...)', 'foo=bar')

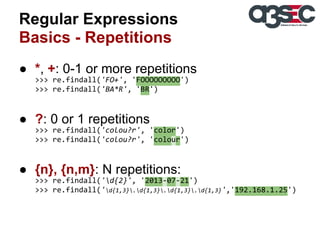

Regular Expressions Basics - Repetitions ● *, +: 0-1 or more repetitions >>> re.findall('FO+', 'FOOOOOOOOO') >>> re.findall('BA*R', 'BR') ● ?: 0 or 1 repetitions >>> re.findall('colou?r', 'color') >>> re.findall('colou?r', 'colour') ● {n}, {n,m}: N repetitions: >>> re.findall('d{2}', '2013-07-21') >>> re.findall('d{1,3}.d{1,3}.d{1,3}.d{1,3}','192.168.1.25')

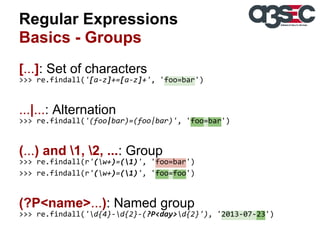

Regular Expressions Basics - Groups [...]: Set of characters >>> re.findall('[a-z]+=[a-z]+', 'foo=bar') ...|...: Alternation >>> re.findall('(foo|bar)=(foo|bar)', 'foo=bar') (...) and 1, 2, ...: Group >>> re.findall(r'(w+)=(1)', 'foo=bar') >>> re.findall(r'(w+)=(1)', 'foo=foo') (?P<name>...): Named group >>> re.findall('d{4}-d{2}-(?P<day>d{2}'), '2013-07-23')

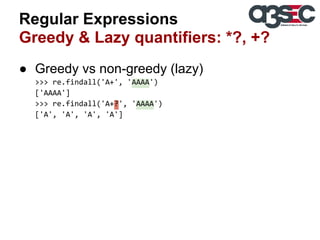

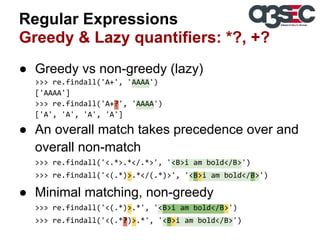

Regular Expressions Greedy & Lazy quantifiers: *?, +? ● Greedy vs non-greedy (lazy) >>> re.findall('A+', 'AAAA') ['AAAA'] >>> re.findall('A+?', 'AAAA') ['A', 'A', 'A', 'A']
Regular Expressions Greedy & Lazy quantifiers: *?, +? ● Greedy vs non-greedy (lazy) >>> re.findall('A+', 'AAAA') ['AAAA'] >>> re.findall('A+?', 'AAAA') ['A', 'A', 'A', 'A'] ● An overall match takes precedence over and overall non-match >>> re.findall('<.*>.*</.*>', '<B>i am bold</B>') >>> re.findall('<(.*)>.*</(.*)>', '<B>i am bold</B>')
Regular Expressions Greedy & Lazy quantifiers: *?, +? ● Greedy vs non-greedy (lazy) >>> re.findall('A+', 'AAAA') ['AAAA'] >>> re.findall('A+?', 'AAAA') ['A', 'A', 'A', 'A'] ● An overall match takes precedence over and overall non-match >>> re.findall('<.*>.*</.*>', '<B>i am bold</B>') >>> re.findall('<(.*)>.*</(.*)>', '<B>i am bold</B>') ● Minimal matching, non-greedy >>> re.findall('<(.*)>.*', '<B>i am bold</B>') >>> re.findall('<(.*?)>.*', '<B>i am bold</B>')

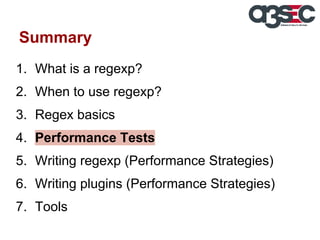

Summary 1. What is a regexp? 2. When to use regexp? 3. Regex basics 4. Performance Tests 5. Writing regexp (Performance Strategies) 6. Writing plugins (Performance Strategies) 7. Tools

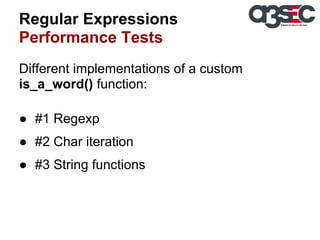

Regular Expressions Performance Tests Different implementations of a custom is_a_word() function: ● #1 Regexp ● #2 Char iteration ● #3 String functions

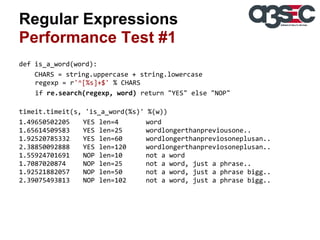

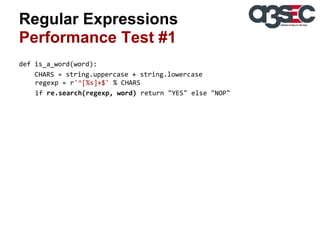

Regular Expressions Performance Test #1 def is_a_word(word): CHARS = string.uppercase + string.lowercase regexp = r'^[%s]+$' % CHARS if re.search(regexp, word) return "YES" else "NOP"
Regular Expressions Performance Test #1 def is_a_word(word): CHARS = string.uppercase + string.lowercase regexp = r'^[%s]+$' % CHARS if re.search(regexp, word) return "YES" else "NOP" timeit.timeit(s, 'is_a_word(%s)' %(w)) 1.49650502205 YES len=4 word 1.65614509583 YES len=25 wordlongerthanpreviousone.. 1.92520785332 YES len=60 wordlongerthanpreviosoneplusan.. 2.38850092888 YES len=120 wordlongerthanpreviosoneplusan.. 1.55924701691 NOP len=10 not a word 1.7087020874 NOP len=25 not a word, just a phrase.. 1.92521882057 NOP len=50 not a word, just a phrase bigg.. 2.39075493813 NOP len=102 not a word, just a phrase bigg..

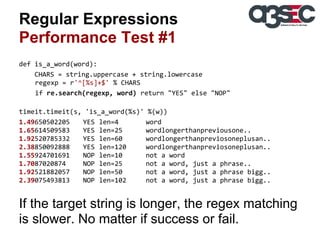

Regular Expressions Performance Test #1 def is_a_word(word): CHARS = string.uppercase + string.lowercase regexp = r'^[%s]+$' % CHARS if re.search(regexp, word) return "YES" else "NOP" timeit.timeit(s, 'is_a_word(%s)' %(w)) 1.49650502205 YES len=4 word 1.65614509583 YES len=25 wordlongerthanpreviousone.. 1.92520785332 YES len=60 wordlongerthanpreviosoneplusan.. 2.38850092888 YES len=120 wordlongerthanpreviosoneplusan.. 1.55924701691 NOP len=10 not a word 1.7087020874 NOP len=25 not a word, just a phrase.. 1.92521882057 NOP len=50 not a word, just a phrase bigg.. 2.39075493813 NOP len=102 not a word, just a phrase bigg.. If the target string is longer, the regex matching is slower. No matter if success or fail.

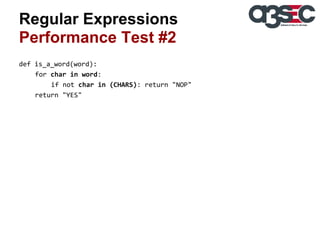

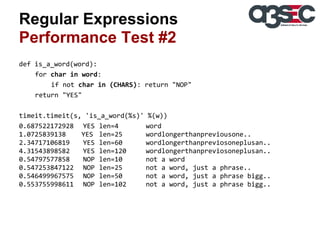

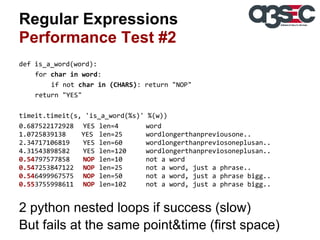

Regular Expressions Performance Test #2 def is_a_word(word): for char in word: if not char in (CHARS): return "NOP" return "YES"
Regular Expressions Performance Test #2 def is_a_word(word): for char in word: if not char in (CHARS): return "NOP" return "YES" timeit.timeit(s, 'is_a_word(%s)' %(w)) 0.687522172928 YES len=4 word 1.0725839138 YES len=25 wordlongerthanpreviousone.. 2.34717106819 YES len=60 wordlongerthanpreviosoneplusan.. 4.31543898582 YES len=120 wordlongerthanpreviosoneplusan.. 0.54797577858 NOP len=10 not a word 0.547253847122 NOP len=25 not a word, just a phrase.. 0.546499967575 NOP len=50 not a word, just a phrase bigg.. 0.553755998611 NOP len=102 not a word, just a phrase bigg..
Regular Expressions Performance Test #2 def is_a_word(word): for char in word: if not char in (CHARS): return "NOP" return "YES" timeit.timeit(s, 'is_a_word(%s)' %(w)) 0.687522172928 YES len=4 word 1.0725839138 YES len=25 wordlongerthanpreviousone.. 2.34717106819 YES len=60 wordlongerthanpreviosoneplusan.. 4.31543898582 YES len=120 wordlongerthanpreviosoneplusan.. 0.54797577858 NOP len=10 not a word 0.547253847122 NOP len=25 not a word, just a phrase.. 0.546499967575 NOP len=50 not a word, just a phrase bigg.. 0.553755998611 NOP len=102 not a word, just a phrase bigg.. 2 python nested loops if success (slow) But fails at the same point&time (first space)

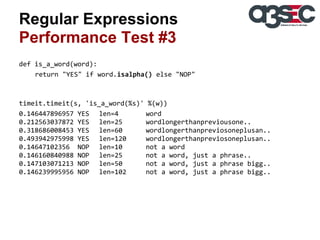

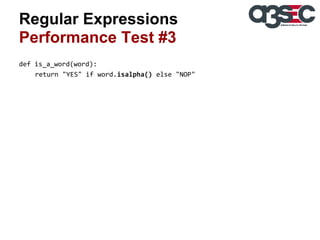

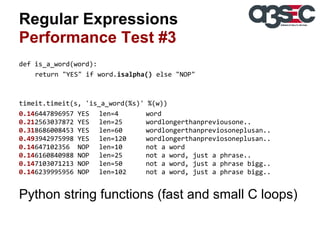

Regular Expressions Performance Test #3 def is_a_word(word): return "YES" if word.isalpha() else "NOP"
Regular Expressions Performance Test #3 def is_a_word(word): return "YES" if word.isalpha() else "NOP" timeit.timeit(s, 'is_a_word(%s)' %(w)) 0.146447896957 YES len=4 word 0.212563037872 YES len=25 wordlongerthanpreviousone.. 0.318686008453 YES len=60 wordlongerthanpreviosoneplusan.. 0.493942975998 YES len=120 wordlongerthanpreviosoneplusan.. 0.14647102356 NOP len=10 not a word 0.146160840988 NOP len=25 not a word, just a phrase.. 0.147103071213 NOP len=50 not a word, just a phrase bigg.. 0.146239995956 NOP len=102 not a word, just a phrase bigg..
Regular Expressions Performance Test #3 def is_a_word(word): return "YES" if word.isalpha() else "NOP" timeit.timeit(s, 'is_a_word(%s)' %(w)) 0.146447896957 YES len=4 word 0.212563037872 YES len=25 wordlongerthanpreviousone.. 0.318686008453 YES len=60 wordlongerthanpreviosoneplusan.. 0.493942975998 YES len=120 wordlongerthanpreviosoneplusan.. 0.14647102356 NOP len=10 not a word 0.146160840988 NOP len=25 not a word, just a phrase.. 0.147103071213 NOP len=50 not a word, just a phrase bigg.. 0.146239995956 NOP len=102 not a word, just a phrase bigg.. Python string functions (fast and small C loops)
Summary 1. What is a regexp? 2. When to use regexp? 3. Regex basics 4. Performance Tests 5. Writing regexp (Performance Strategies) 6. Writing plugins (Performance Strategies) 7. Tools

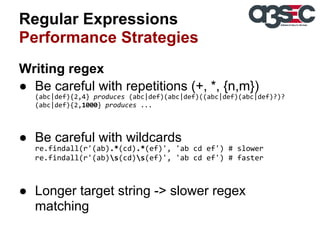

Regular Expressions Performance Strategies Writing regex ● Be careful with repetitions (+, *, {n,m}) (abc|def){2,4} produces (abc|def)(abc|def)((abc|def)(abc|def)?)?

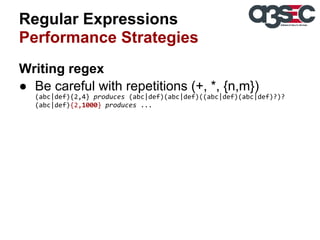

Regular Expressions Performance Strategies Writing regex ● Be careful with repetitions (+, *, {n,m}) (abc|def){2,4} produces (abc|def)(abc|def)((abc|def)(abc|def)?)? (abc|def){2,1000} produces ...
Regular Expressions Performance Strategies Writing regex ● Be careful with repetitions (+, *, {n,m}) (abc|def){2,4} produces (abc|def)(abc|def)((abc|def)(abc|def)?)? (abc|def){2,1000} produces ... ● Be careful with wildcards re.findall(r'(ab).*(cd).*(ef)', 'ab cd ef')

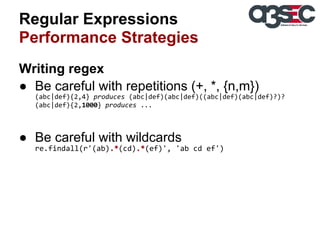

Regular Expressions Performance Strategies Writing regex ● Be careful with repetitions (+, *, {n,m}) (abc|def){2,4} produces (abc|def)(abc|def)((abc|def)(abc|def)?)? (abc|def){2,1000} produces ... ● Be careful with wildcards re.findall(r'(ab).*(cd).*(ef)', 'ab cd ef') # slower re.findall(r'(ab)s(cd)s(ef)', 'ab cd ef') # faster

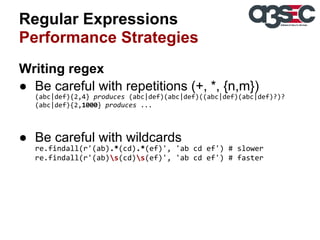

Regular Expressions Performance Strategies Writing regex ● Be careful with repetitions (+, *, {n,m}) (abc|def){2,4} produces (abc|def)(abc|def)((abc|def)(abc|def)?)? (abc|def){2,1000} produces ... ● Be careful with wildcards re.findall(r'(ab).*(cd).*(ef)', 'ab cd ef') # slower re.findall(r'(ab)s(cd)s(ef)', 'ab cd ef') # faster ● Longer target string -> slower regex matching

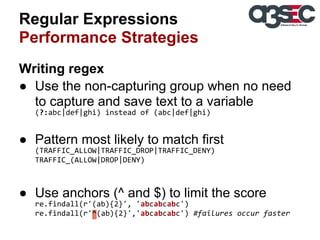

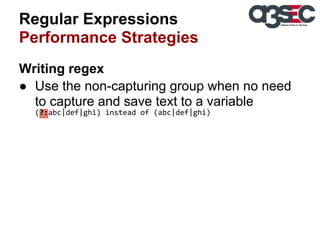

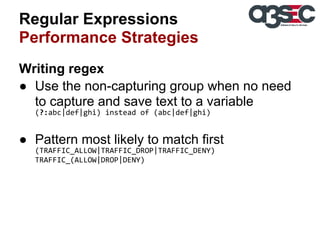

Regular Expressions Performance Strategies Writing regex ● Use the non-capturing group when no need to capture and save text to a variable (?:abc|def|ghi) instead of (abc|def|ghi)
Regular Expressions Performance Strategies Writing regex ● Use the non-capturing group when no need to capture and save text to a variable (?:abc|def|ghi) instead of (abc|def|ghi) ● Pattern most likely to match first (TRAFFIC_ALLOW|TRAFFIC_DROP|TRAFFIC_DENY)
Regular Expressions Performance Strategies Writing regex ● Use the non-capturing group when no need to capture and save text to a variable (?:abc|def|ghi) instead of (abc|def|ghi) ● Pattern most likely to match first (TRAFFIC_ALLOW|TRAFFIC_DROP|TRAFFIC_DENY) TRAFFIC_(ALLOW|DROP|DENY)
Regular Expressions Performance Strategies Writing regex ● Use the non-capturing group when no need to capture and save text to a variable (?:abc|def|ghi) instead of (abc|def|ghi) ● Pattern most likely to match first (TRAFFIC_ALLOW|TRAFFIC_DROP|TRAFFIC_DENY) TRAFFIC_(ALLOW|DROP|DENY) ● Use anchors (^ and $) to limit the score re.findall(r'(ab){2}', 'abcabcabc') re.findall(r'^(ab){2}','abcabcabc') #failures occur faster

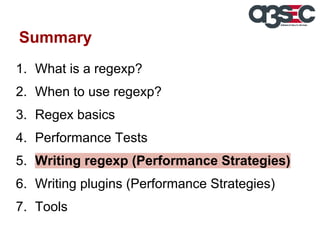

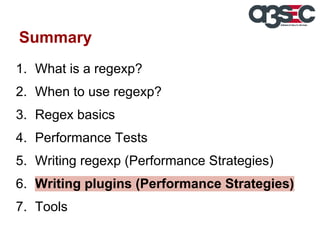

Summary 1. What is a regexp? 2. When to use regexp? 3. Regex basics 4. Performance Tests 5. Writing regexp (Performance Strategies) 6. Writing plugins (Performance Strategies) 7. Tools

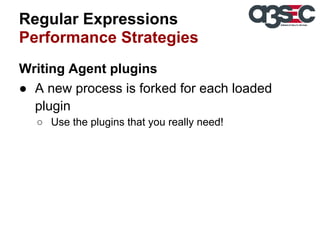

Regular Expressions Performance Strategies Writing Agent plugins ● A new process is forked for each loaded plugin ○ Use the plugins that you really need!
Regular Expressions Performance Strategies Writing Agent plugins ● A new process is forked for each loaded plugin ○ Use the plugins that you really need! ● A plugin is a set of rules (regexp operations) for matching log lines ○ If a plugin doesn't match a log entry, it fails in ALL its rules! ○ Reduce the number of rules, use a [translation] table

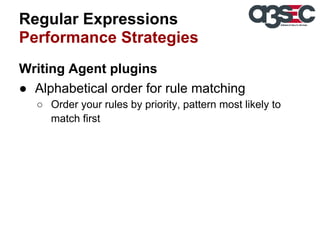

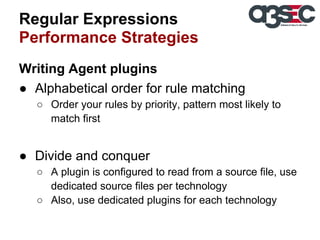

Regular Expressions Performance Strategies Writing Agent plugins ● Alphabetical order for rule matching ○ Order your rules by priority, pattern most likely to match first
Regular Expressions Performance Strategies Writing Agent plugins ● Alphabetical order for rule matching ○ Order your rules by priority, pattern most likely to match first ● Divide and conquer ○ A plugin is configured to read from a source file, use dedicated source files per technology ○ Also, use dedicated plugins for each technology

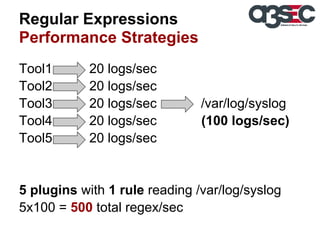

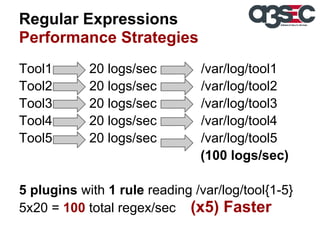

Regular Expressions Performance Strategies Tool1 Tool2 Tool3 Tool4 Tool5 20 logs/sec 20 logs/sec 20 logs/sec 20 logs/sec 20 logs/sec /var/log/syslog (100 logs/sec) 5 plugins with 1 rule reading /var/log/syslog 5x100 = 500 total regex/sec
Regular Expressions Performance Strategies Tool1 Tool2 Tool3 Tool4 Tool5 20 logs/sec 20 logs/sec 20 logs/sec 20 logs/sec 20 logs/sec /var/log/tool1 /var/log/tool2 /var/log/tool3 /var/log/tool4 /var/log/tool5 (100 logs/sec) 5 plugins with 1 rule reading /var/log/tool{1-5} 5x20 = 100 total regex/sec (x5) Faster

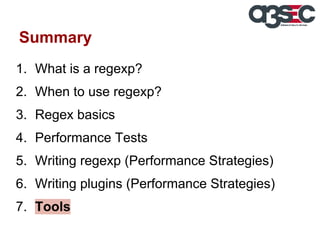

Summary 1. What is a regexp? 2. When to use regexp? 3. Regex basics 4. Performance Tests 5. Writing regexp (Performance Strategies) 6. Writing plugins (Performance Strategies) 7. Tools

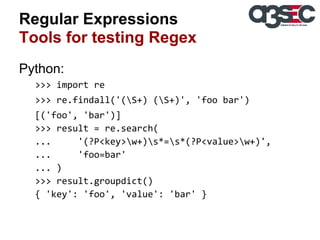

Regular Expressions Tools for testing Regex Python: >>> import re >>> re.findall('(S+) (S+)', 'foo bar') [('foo', 'bar')] >>> result = re.search( ... '(?P<key>w+)s*=s*(?P<value>w+)', ... 'foo=bar' ... ) >>> result.groupdict() { 'key': 'foo', 'value': 'bar' }

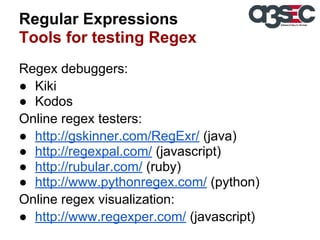

Regular Expressions Tools for testing Regex Regex debuggers: ● Kiki ● Kodos Online regex testers: ● http://gskinner.com/RegExr/ (java) ● http://regexpal.com/ (javascript) ● http://rubular.com/ (ruby) ● http://www.pythonregex.com/ (python) Online regex visualization: ● http://www.regexper.com/ (javascript)

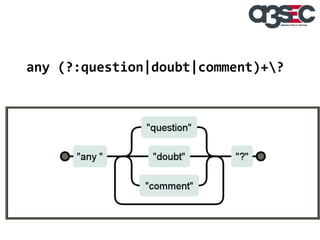

any (?:question|doubt|comment)+?
A3Sec web: www.a3sec.com email: training@a3sec.com twitter: @a3sec Spain Head Office C/ Aravaca, 6, Piso 2 28040 Madrid Tlf. +34 533 09 78 México Head Office Avda. Paseo de la Reforma, 389 Piso 10 México DF Tlf. +52 55 5980 3547
