Robot Option
Energy Supply System A1 - A3
KR CYBERTECH
Art. No. 00-316-394, 00-316-396
Assembly and Operating Instructions
KUKA Deutschland GmbH
Issued: 20.04.2018
Version: MA ES KR CYBERTECH A1-A3 00-316-394, 00-316-396 V1
Energy Sup-
ply System A1
- A3

2 / 33 Issued: 20.04.2018 Version: MA ES KR CYBERTECH A1-A3 00-316-394, 00-316-396 V1

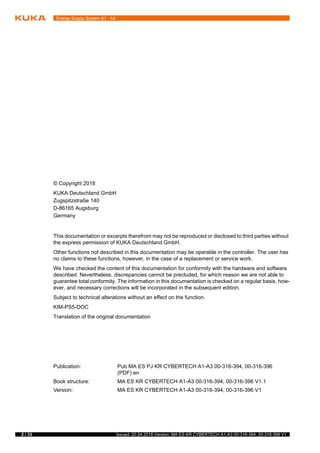

© Copyright 2018
KUKA Deutschland GmbH
Zugspitzstraße 140
D-86165 Augsburg
Germany
This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without
the express permission of KUKA Deutschland GmbH.
Other functions not described in this documentation may be operable in the controller. The user has
no claims to these functions, however, in the case of a replacement or service work.
We have checked the content of this documentation for conformity with the hardware and software
described. Nevertheless, discrepancies cannot be precluded, for which reason we are not able to
guarantee total conformity. The information in this documentation is checked on a regular basis, how-
ever, and necessary corrections will be incorporated in the subsequent edition.
Subject to technical alterations without an effect on the function.
KIM-PS5-DOC
Translation of the original documentation
Publication: Pub MA ES PJ KR CYBERTECH A1-A3 00-316-394, 00-316-396
(PDF) en
Book structure: MA ES KR CYBERTECH A1-A3 00-316-394, 00-316-396 V1.1
Version: MA ES KR CYBERTECH A1-A3 00-316-394, 00-316-396 V1

3 / 33Issued: 20.04.2018 Version: MA ES KR CYBERTECH A1-A3 00-316-394, 00-316-396 V1

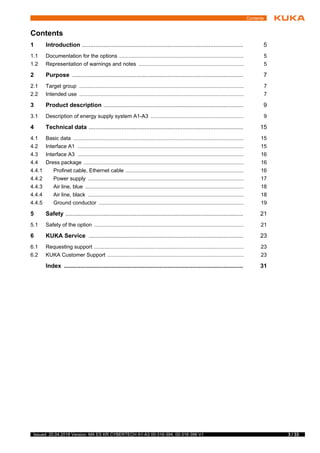

Contents
1 Introduction .................................................................................................. 5
1.1 Documentation for the options ................................................................................... 5
1.2 Representation of warnings and notes ...................................................................... 5
2 Purpose ........................................................................................................ 7
2.1 Target group .............................................................................................................. 7
2.2 Intended use .............................................................................................................. 7
3 Product description ..................................................................................... 9
3.1 Description of energy supply system A1-A3 .............................................................. 9
4 Technical data .............................................................................................. 15
4.1 Basic data .................................................................................................................. 15
4.2 Interface A1 ............................................................................................................... 15

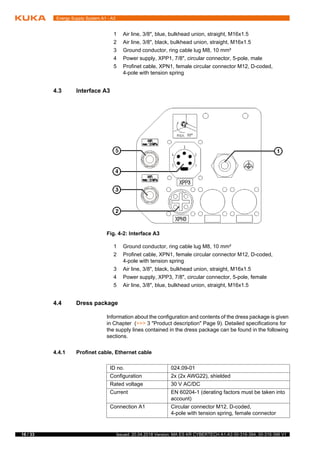

4.3 Interface A3 ............................................................................................................... 16
4.4 Dress package ........................................................................................................... 16

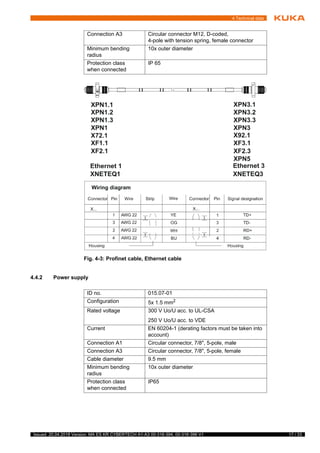

4.4.1 Profinet cable, Ethernet cable ............................................................................... 16

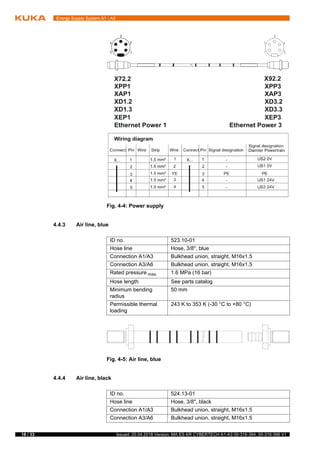

4.4.2 Power supply ........................................................................................................ 17
4.4.3 Air line, blue .......................................................................................................... 18
4.4.4 Air line, black ........................................................................................................ 18
4.4.5 Ground conductor ................................................................................................. 19

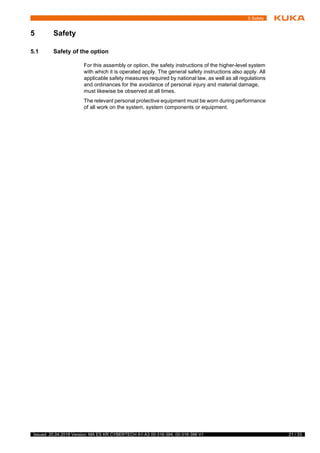

5 Safety ............................................................................................................ 21
5.1 Safety of the option .................................................................................................... 21

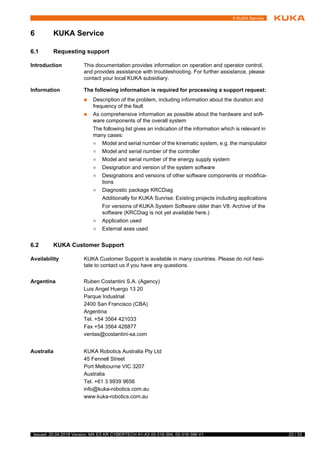

6 KUKA Service .............................................................................................. 23
6.1 Requesting support .................................................................................................... 23

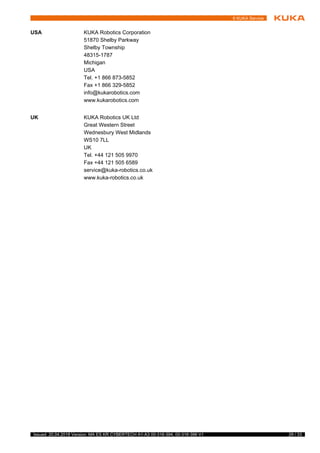

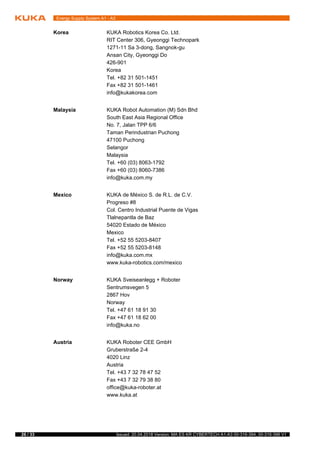

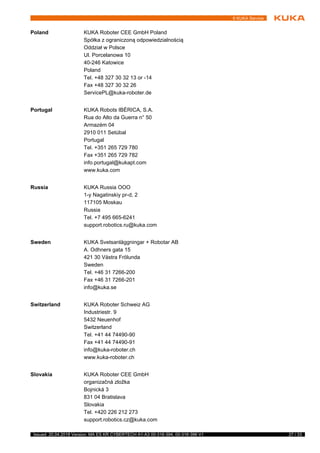

6.2 KUKA Customer Support ........................................................................................... 23

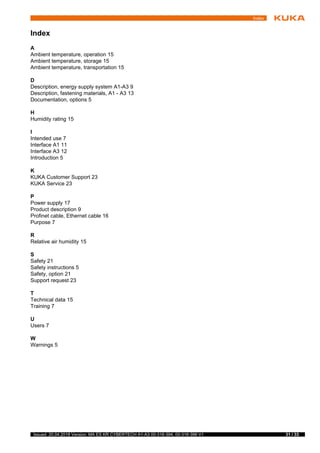

Index ............................................................................................................. 31
Contents

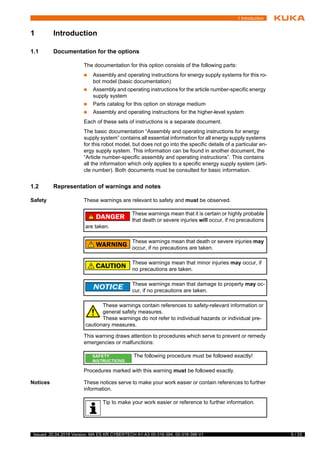

1 Introduction
1 Introduction
1.1 Documentation for the options
The documentation for this option consists of the following parts:
 Assembly and operating instructions for energy supply systems for this ro-
bot model (basic documentation)
 Assembly and operating instructions for the article number-specific energy
supply system
 Parts catalog for this option on storage medium
 Assembly and operating instructions for the higher-level system
Each of these sets of instructions is a separate document.
The basic documentation “Assembly and operating instructions for energy
supply system” contains all essential information for all energy supply systems
for this robot model, but does not go into the specific details of a particular en-
ergy supply system. This information can be found in another document, the
“Article number-specific assembly and operating instructions”. This contains
all the information which only applies to a specific energy supply system (arti-
cle number). Both documents must be consulted for basic information.
1.2 Representation of warnings and notes
Safety These warnings are relevant to safety and must be observed.
This warning draws attention to procedures which serve to prevent or remedy
emergencies or malfunctions:
Procedures marked with this warning must be followed exactly.
Notices These notices serve to make your work easier or contain references to further
information.
t
t
These warnings mean that it is certain or highly probable
that death or severe injuries will occur, if no precautions
are taken.
These warnings mean that death or severe injuries may
occur, if no precautions are taken.
These warnings mean that minor injuries may occur, if
no precautions are taken.
These warnings mean that damage to property may oc-
cur, if no precautions are taken.
These warnings contain references to safety-relevant information or
general safety measures.
These warnings do not refer to individual hazards or individual pre-
cautionary measures.
The following procedure must be followed exactly!
Tip to make your work easier or reference to further information.

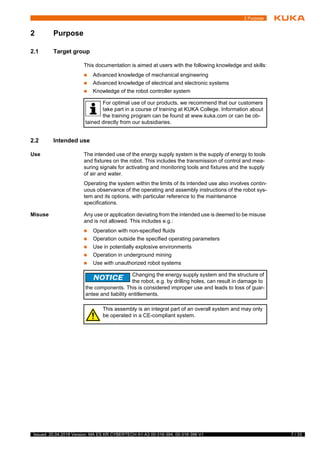

2 Purpose
2 Purpose
2.1 Target group
This documentation is aimed at users with the following knowledge and skills:
 Advanced knowledge of mechanical engineering
 Advanced knowledge of electrical and electronic systems
 Knowledge of the robot controller system
2.2 Intended use
Use The intended use of the energy supply system is the supply of energy to tools
and fixtures on the robot. This includes the transmission of control and mea-
suring signals for activating and monitoring tools and fixtures and the supply
of air and water.
Operating the system within the limits of its intended use also involves contin-
uous observance of the operating and assembly instructions of the robot sys-
tem and its options, with particular reference to the maintenance
specifications.
Misuse Any use or application deviating from the intended use is deemed to be misuse
and is not allowed. This includes e.g.:
 Operation with non-specified fluids
 Operation outside the specified operating parameters
 Use in potentially explosive environments
 Operation in underground mining
 Use with unauthorized robot systems
2
s
For optimal use of our products, we recommend that our customers
take part in a course of training at KUKA College. Information about
the training program can be found at www.kuka.com or can be ob-
tained directly from our subsidiaries.
Changing the energy supply system and the structure of
the robot, e.g. by drilling holes, can result in damage to
the components. This is considered improper use and leads to loss of guar-
antee and liability entitlements.
This assembly is an integral part of an overall system and may only
be operated in a CE-compliant system.

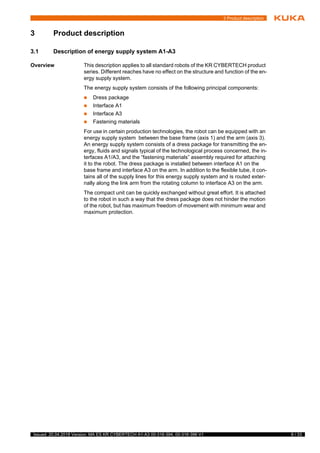

3 Product description
3.1 Description of energy supply system A1-A3
Overview This description applies to all standard robots of the KR CYBERTECH product
series. Different reaches have no effect on the structure and function of the en-
ergy supply system.
The energy supply system consists of the following principal components:
 Dress package
 Interface A1
 Interface A3
 Fastening materials
For use in certain production technologies, the robot can be equipped with an
energy supply system between the base frame (axis 1) and the arm (axis 3).
An energy supply system consists of a dress package for transmitting the en-
ergy, fluids and signals typical of the technological process concerned, the in-
terfaces A1/A3, and the “fastening materials” assembly required for attaching
it to the robot. The dress package is installed between interface A1 on the
base frame and interface A3 on the arm. In addition to the flexible tube, it con-
tains all of the supply lines for this energy supply system and is routed exter-
nally along the link arm from the rotating column to interface A3 on the arm.
The compact unit can be quickly exchanged without great effort. It is attached
to the robot in such a way that the dress package does not hinder the motion
of the robot, but has maximum freedom of movement with minimum wear and
maximum protection.
t
s

Dress package The contents of the dress package (>>> Fig. 3-2 ) depend on the specific ap-
plication and may therefore vary greatly. At the two extremes, the dress pack-
age can either be empty, or filled to a maximum of 70% of the cross-sectional
area of the flexible tube.
The cables and hoses are routed inside the robot from interface A1 between
the base frame and the rotating column in flexible tube A1 - A2. From there,
the cables and hoses are routed in flexible tube A2 - A3 on the rotating column,
along the link arm, to interface A3 on the arm. The flexible tube is guided and
fastened by means of hinged clamps and holders. The intermediate pieces are
used for fixing the flexible tube in the hinged clamps in such a way that it can
rotate freely. The position of the intermediate piece is indicated by white mark-
ings on the flexible tube. At the end of the flexible tube is a clamping piece with
worm drive clip assembly for locating and orienting the cables and hoses at
the transitional points. At interfaces A1 and A3, the electric cables are fas-
tened by means of connector housings and the hoses by means of bulkhead
unions.

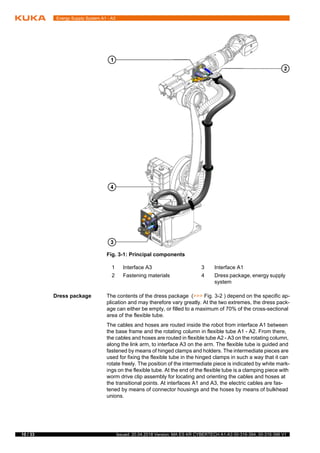

Fig. 3-1: Principal components
1 Interface A3 3 Interface A1
2 Fastening materials 4 Dress package, energy supply
system

Interface A1 The cables and hoses of the energy supply system are connected to the robot
via interface A1 (>>> Fig. 3-3 ), which is located in the base frame of the ro-
bot. All incoming cables and hoses from the system are connected to the robot
here. The interface is application and task-specific and has either connectors
or unions, depending on the equipment. Coded connectors and labeling of the
connections prevent incorrect configuration of the interface.
Further information and detailed specifications about this interface can be
found in the parts catalog and Chapter (>>> 4 "Technical data" Page 15).

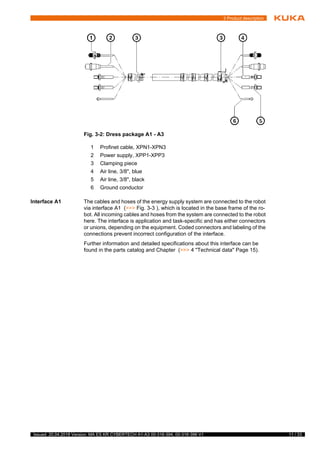

Fig. 3-2: Dress package A1 - A3
1 Profinet cable, XPN1-XPN3
2 Power supply, XPP1-XPP3
3 Clamping piece
4 Air line, 3/8", blue
5 Air line, 3/8", black
6 Ground conductor

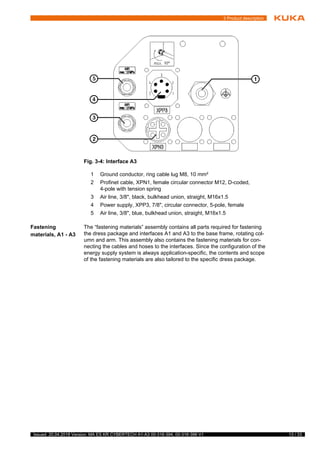

Interface A3 “Energy supply system A3” is connected via interface A3 (>>> Fig. 3-4 ),
which is located on the arm of the robot. All incoming cables and hoses from
“Energy supply system A3” are connected here. The user is responsible for the
configuration of the interface. The configuration is application and task-specif-
ic and is defined by the user.
Further information and detailed specifications about this interface can be
found in the parts catalog and Chapter (>>> 4 "Technical data" Page 15).

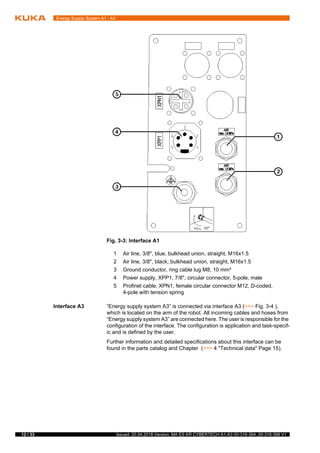

Fig. 3-3: Interface A1
1 Air line, 3/8", blue, bulkhead union, straight, M16x1.5
2 Air line, 3/8", black, bulkhead union, straight, M16x1.5
3 Ground conductor, ring cable lug M8, 10 mm²
4 Power supply, XPP1, 7/8", circular connector, 5-pole, male
5 Profinet cable, XPN1, female circular connector M12, D-coded,
4-pole with tension spring

Fastening
materials, A1 - A3
The “fastening materials” assembly contains all parts required for fastening
the dress package and interfaces A1 and A3 to the base frame, rotating col-
umn and arm. This assembly also contains the fastening materials for con-
necting the cables and hoses to the interfaces. Since the configuration of the
energy supply system is always application-specific, the contents and scope
of the fastening materials are also tailored to the specific dress package.
4 Power supply, XPP3, 7/8", circular connector, 5-pole, female

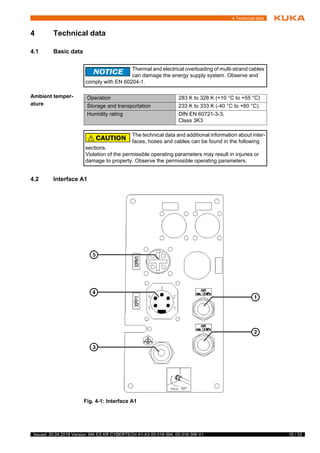

4 Technical data
4 Technical data
4.1 Basic data
Ambient temper-
ature
4.2 Interface A1
4
T
t
Thermal and electrical overloading of multi-strand cables
can damage the energy supply system. Observe and
comply with EN 60204-1.
Operation 283 K to 328 K (+10 °C to +55 °C)
Storage and transportation 233 K to 333 K (-40 °C to +60 °C)
Humidity rating DIN EN 60721-3-3,
Class 3K3
The technical data and additional information about inter-
faces, hoses and cables can be found in the following
sections.
Violation of the permissible operating parameters may result in injuries or
damage to property. Observe the permissible operating parameters.

4.3 Interface A3
4.4 Dress package
Information about the configuration and contents of the dress package is given
in Chapter (>>> 3 "Product description" Page 9). Detailed specifications for
the supply lines contained in the dress package can be found in the following
sections.
4.4.1 Profinet cable, Ethernet cable
4 Power supply, XPP1, 7/8", circular connector, 5-pole, male
4 Power supply, XPP3, 7/8", circular connector, 5-pole, female
ID no. 024.09-01
Configuration 2x (2x AWG22), shielded
Rated voltage 30 V AC/DC
Current EN 60204-1 (derating factors must be taken into
account)
Connection A1 Circular connector M12, D-coded,
4-pole with tension spring, female connector

4 Technical data
4.4.2 Power supply
Connection A3 Circular connector M12, D-coded,
4-pole with tension spring, female connector
Minimum bending
radius
10x outer diameter
Protection class
when connected
IP 65
Fig. 4-3: Profinet cable, Ethernet cable
ID no. 015.07-01
Configuration 5x 1.5 mm2
Rated voltage 300 V Uo/U acc. to UL-CSA
250 V Uo/U acc. to VDE
Current EN 60204-1 (derating factors must be taken into
account)
Connection A1 Circular connector, 7/8", 5-pole, male
Connection A3 Circular connector, 7/8", 5-pole, female
Cable diameter 9.5 mm
Minimum bending
radius
10x outer diameter
Protection class
when connected
IP65

4.4.3 Air line, blue
4.4.4 Air line, black
Fig. 4-4: Power supply
ID no. 523.10-01
Hose line Hose, 3/8", blue
Connection A1/A3 Bulkhead union, straight, M16x1.5
Rated pressure max. 1.6 MPa (16 bar)
Hose length See parts catalog
Minimum bending
radius
50 mm
Permissible thermal
loading
243 K to 353 K (-30 °C to +80 °C)
Fig. 4-5: Air line, blue
ID no. 524.13-01
Hose line Hose, 3/8", black

4 Technical data
4.4.5 Ground conductor
Rated pressure max. 1.6 MPa (16 bar)
Hose length See parts catalog
Minimum bending
radius
50 mm
Permissible thermal
loading
243 K to 353 K (-30 °C to +80 °C)
Fig. 4-6: Air line, black
ID no. 017.01-01
Configuration 1x 10 mm2
Connection A1 Ring cable lug M8, 10 mm2
Connection A3 Ring cable lug M8, 10 mm2
Minimum bending
radius
10x outer diameter
Fig. 4-7: Ground conductor

5 Safety
5 Safety
5.1 Safety of the option
For this assembly or option, the safety instructions of the higher-level system
with which it is operated apply. The general safety instructions also apply. All
applicable safety measures required by national law, as well as all regulations
and ordinances for the avoidance of personal injury and material damage,
must likewise be observed at all times.
The relevant personal protective equipment must be worn during performance
of all work on the system, system components or equipment.
f
t
y

6 KUKA Service
6 KUKA Service
6.1 Requesting support
Introduction This documentation provides information on operation and operator control,
and provides assistance with troubleshooting. For further assistance, please
contact your local KUKA subsidiary.
Information The following information is required for processing a support request:
 Description of the problem, including information about the duration and
frequency of the fault
 As comprehensive information as possible about the hardware and soft-
ware components of the overall system
The following list gives an indication of the information which is relevant in
many cases:
 Model and serial number of the kinematic system, e.g. the manipulator
 Model and serial number of the controller
 Model and serial number of the energy supply system
 Designation and version of the system software
 Designations and versions of other software components or modifica-
tions
 Diagnostic package KRCDiag
Additionally for KUKA Sunrise: Existing projects including applications
For versions of KUKA System Software older than V8: Archive of the
software (KRCDiag is not yet available here.)
 Application used
 External axes used
6.2 KUKA Customer Support
Availability KUKA Customer Support is available in many countries. Please do not hesi-
tate to contact us if you have any questions.
Argentina Ruben Costantini S.A. (Agency)
Luis Angel Huergo 13 20
Parque Industrial
2400 San Francisco (CBA)
Argentina
Tel. +54 3564 421033
Fax +54 3564 428877
ventas@costantini-sa.com
Australia KUKA Robotics Australia Pty Ltd
45 Fennell Street
Port Melbourne VIC 3207
Australia
Tel. +61 3 9939 9656
info@kuka-robotics.com.au
www.kuka-robotics.com.au
A
v

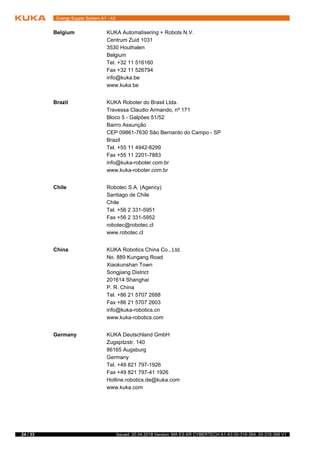

Belgium KUKA Automatisering + Robots N.V.
Centrum Zuid 1031
3530 Houthalen
Belgium
Tel. +32 11 516160
Fax +32 11 526794
info@kuka.be
www.kuka.be
Brazil KUKA Roboter do Brasil Ltda.
Travessa Claudio Armando, nº 171
Bloco 5 - Galpões 51/52
Bairro Assunção
CEP 09861-7630 São Bernardo do Campo - SP
Brazil
Tel. +55 11 4942-8299
Fax +55 11 2201-7883
info@kuka-roboter.com.br
www.kuka-roboter.com.br
Chile Robotec S.A. (Agency)
Santiago de Chile
Chile
Tel. +56 2 331-5951
Fax +56 2 331-5952
robotec@robotec.cl
www.robotec.cl
China KUKA Robotics China Co., Ltd.
No. 889 Kungang Road
Xiaokunshan Town
Songjiang District
201614 Shanghai
P. R. China
Tel. +86 21 5707 2688
Fax +86 21 5707 2603
info@kuka-robotics.cn
www.kuka-robotics.com
Germany KUKA Deutschland GmbH
Zugspitzstr. 140
86165 Augsburg
Germany
Tel. +49 821 797-1926
Fax +49 821 797-41 1926
Hotline.robotics.de@kuka.com
www.kuka.com

6 KUKA Service
France KUKA Automatisme + Robotique SAS
Techvallée
6, Avenue du Parc
91140 Villebon S/Yvette
France
Tel. +33 1 6931660-0
Fax +33 1 6931660-1
commercial@kuka.fr
www.kuka.fr
India KUKA Robotics India Pvt. Ltd.
Office Number-7, German Centre,
Level 12, Building No. - 9B
DLF Cyber City Phase III
122 002 Gurgaon
Haryana
India
Tel. +91 124 4635774
Fax +91 124 4635773
info@kuka.in
www.kuka.in
Italy KUKA Roboter Italia S.p.A.
Via Pavia 9/a - int.6
10098 Rivoli (TO)
Italy
Tel. +39 011 959-5013
Fax +39 011 959-5141
kuka@kuka.it
www.kuka.it
Japan KUKA Japan K.K.
YBP Technical Center
134 Godo-cho, Hodogaya-ku
Yokohama, Kanagawa
240 0005
Japan
Tel. +81 45 744 7531
Fax +81 45 744 7541
info@kuka.co.jp
Canada KUKA Robotics Canada Ltd.
6710 Maritz Drive - Unit 4
Mississauga
L5W 0A1
Ontario
Canada
Tel. +1 905 670-8600
Fax +1 905 670-8604
info@kukarobotics.com
www.kuka-robotics.com/canada

Korea KUKA Robotics Korea Co. Ltd.
RIT Center 306, Gyeonggi Technopark
1271-11 Sa 3-dong, Sangnok-gu
Ansan City, Gyeonggi Do
426-901
Korea
Tel. +82 31 501-1451
Fax +82 31 501-1461
info@kukakorea.com
Malaysia KUKA Robot Automation (M) Sdn Bhd
South East Asia Regional Office
No. 7, Jalan TPP 6/6
Taman Perindustrian Puchong
47100 Puchong
Selangor
Malaysia
Tel. +60 (03) 8063-1792
Fax +60 (03) 8060-7386
info@kuka.com.my
Mexico KUKA de México S. de R.L. de C.V.
Progreso #8
Col. Centro Industrial Puente de Vigas
Tlalnepantla de Baz
54020 Estado de México
Mexico
Tel. +52 55 5203-8407
Fax +52 55 5203-8148
info@kuka.com.mx
www.kuka-robotics.com/mexico
Norway KUKA Sveiseanlegg + Roboter
Sentrumsvegen 5
2867 Hov
Norway
Tel. +47 61 18 91 30
Fax +47 61 18 62 00
info@kuka.no
Austria KUKA Roboter CEE GmbH
Gruberstraße 2-4
4020 Linz
Austria
Tel. +43 7 32 78 47 52
Fax +43 7 32 79 38 80
office@kuka-roboter.at
www.kuka.at

6 KUKA Service
Poland KUKA Roboter CEE GmbH Poland
Spółka z ograniczoną odpowiedzialnością
Oddział w Polsce
Ul. Porcelanowa 10
40-246 Katowice
Poland
Tel. +48 327 30 32 13 or -14
Fax +48 327 30 32 26
ServicePL@kuka-roboter.de
Portugal KUKA Robots IBÉRICA, S.A.
Rua do Alto da Guerra n° 50
Armazém 04
2910 011 Setúbal
Portugal
Tel. +351 265 729 780
Fax +351 265 729 782
info.portugal@kukapt.com
www.kuka.com
Russia KUKA Russia OOO
1-y Nagatinskiy pr-d, 2
117105 Moskau
Russia
Tel. +7 495 665-6241
support.robotics.ru@kuka.com
Sweden KUKA Svetsanläggningar + Robotar AB
A. Odhners gata 15
421 30 Västra Frölunda
Sweden
Tel. +46 31 7266-200
Fax +46 31 7266-201
info@kuka.se
Switzerland KUKA Roboter Schweiz AG
Industriestr. 9
5432 Neuenhof
Switzerland
Tel. +41 44 74490-90
Fax +41 44 74490-91
info@kuka-roboter.ch
www.kuka-roboter.ch
Slovakia KUKA Roboter CEE GmbH
organizačná zložka
Bojnická 3
831 04 Bratislava
Slovakia
Tel. +420 226 212 273
support.robotics.cz@kuka.com

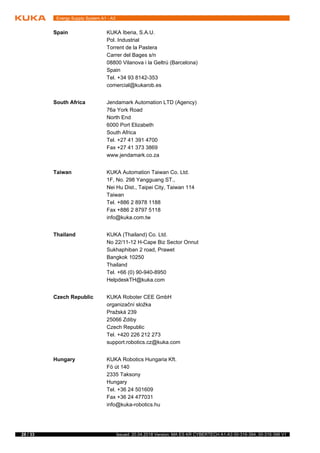

Spain KUKA Iberia, S.A.U.
Pol. Industrial
Torrent de la Pastera
Carrer del Bages s/n
08800 Vilanova i la Geltrú (Barcelona)
Spain
Tel. +34 93 8142-353
comercial@kukarob.es
South Africa Jendamark Automation LTD (Agency)
76a York Road
North End
6000 Port Elizabeth
South Africa
Tel. +27 41 391 4700
Fax +27 41 373 3869
www.jendamark.co.za
Taiwan KUKA Automation Taiwan Co. Ltd.
1F, No. 298 Yangguang ST.,
Nei Hu Dist., Taipei City, Taiwan 114
Taiwan
Tel. +886 2 8978 1188
Fax +886 2 8797 5118
info@kuka.com.tw
Thailand KUKA (Thailand) Co. Ltd.
No 22/11-12 H-Cape Biz Sector Onnut
Sukhaphiban 2 road, Prawet
Bangkok 10250
Thailand
Tel. +66 (0) 90-940-8950
HelpdeskTH@kuka.com
Czech Republic KUKA Roboter CEE GmbH
organizační složka
Pražská 239
25066 Zdiby
Czech Republic
Tel. +420 226 212 273
support.robotics.cz@kuka.com
Hungary KUKA Robotics Hungaria Kft.
Fö út 140
2335 Taksony
Hungary
Tel. +36 24 501609
Fax +36 24 477031
info@kuka-robotics.hu

6 KUKA Service
USA KUKA Robotics Corporation
51870 Shelby Parkway
Shelby Township
48315-1787
Michigan
USA
Tel. +1 866 873-5852
Fax +1 866 329-5852
info@kukarobotics.com
www.kukarobotics.com
UK KUKA Robotics UK Ltd
Great Western Street
Wednesbury West Midlands
WS10 7LL
UK
Tel. +44 121 505 9970
Fax +44 121 505 6589
service@kuka-robotics.co.uk
www.kuka-robotics.co.uk

Index
Index
A
Ambient temperature, operation 15
Ambient temperature, storage 15
Ambient temperature, transportation 15
D
Description, energy supply system A1-A3 9
Description, fastening materials, A1 - A3 13
Documentation, options 5
H
Humidity rating 15
I
Intended use 7
Interface A1 11
Interface A3 12
Introduction 5
K
KUKA Customer Support 23
KUKA Service 23
P
Power supply 17
Product description 9
Profinet cable, Ethernet cable 16
Purpose 7
R
Relative air humidity 15
S
Safety 21
Safety instructions 5
Safety, option 21
Support request 23
T
Technical data 15
Training 7
U
Users 7
W
Warnings 5

0bc16564 4464-11e8-adfa-6cae8b4eb554.data

More Related Content

Similar to 0bc16564 4464-11e8-adfa-6cae8b4eb554.data (20)

More from Edson Silva (20)

Recently uploaded (11)

0bc16564 4464-11e8-adfa-6cae8b4eb554.data
